Product Model

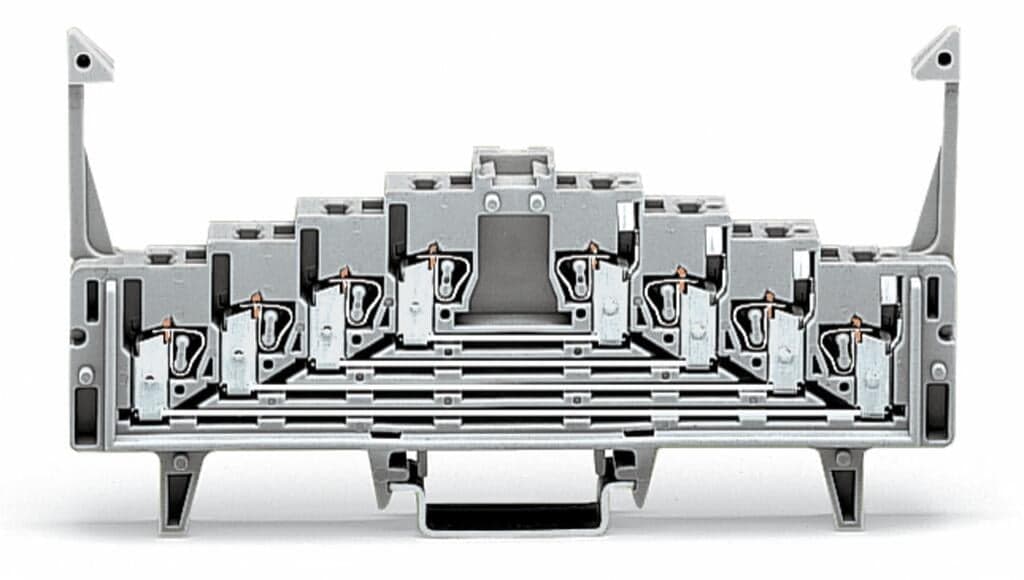

727-229
Key Features
- 14-Level Terminal Block Design: Features four levels for matrix patching with locking clips.
- 2DIN Rail Mounting: Compatible with 35 x 15 DIN rail mounting.
- 3High Current Rating: Rated for 12A continuous operating current.
- 4Impulse Voltage Resistance: Withstands 4kV impulse voltage.
- 5RoHS Compliant and V-0 Flammability Rating: Meets RoHS compliance and has a V-0 flammability rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 16 | Total number of potentials | 4 |
| Number of levels | 4 | Width | 7.62?mm?/ 0.3?inches |
| Height | 126?mm?/ 4.961?inches | Depth from upper-edge of DIN-rail | 62?mm?/ 2.441?inches |
| Marking | plain | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.561MJ |
| Weight | 32.7g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454189242 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 12A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
