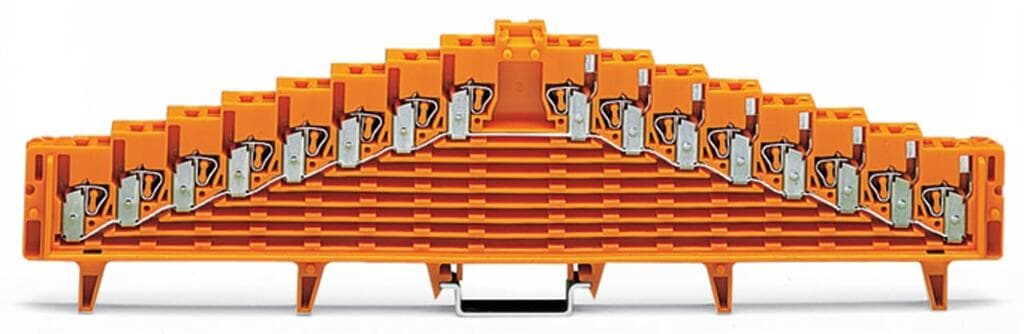

Product Model
727-136
Key Features
- 1High-Current Capability: Withstands up to 22,200 A of short-time current without damage.
- 2Gastight Clamping Units: Ensures secure and reliable connections in harsh environments.
- 3Superior Contact Quality: Measurable contact pressure similar to screw connections for consistent performance.
- 4Durable Design: Passes rigorous tests including temperature cycling, industrial atmospheres, and salt spray tests.
- 5Versatile Applications: Ideal for marine, industrial, and automation applications requiring high-current connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 32 | Total number of potentials | 1 |
| Number of levels | 8 | Width | 7.62?mm?/ 0.3?inches |
| Height | 226?mm?/ 8.898?inches | Depth from upper-edge of DIN-rail | 58.5?mm?/ 2.303?inches |
| Marking | plain | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 1.187MJ |
| Weight | 62.2g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454188283 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
