Product Model

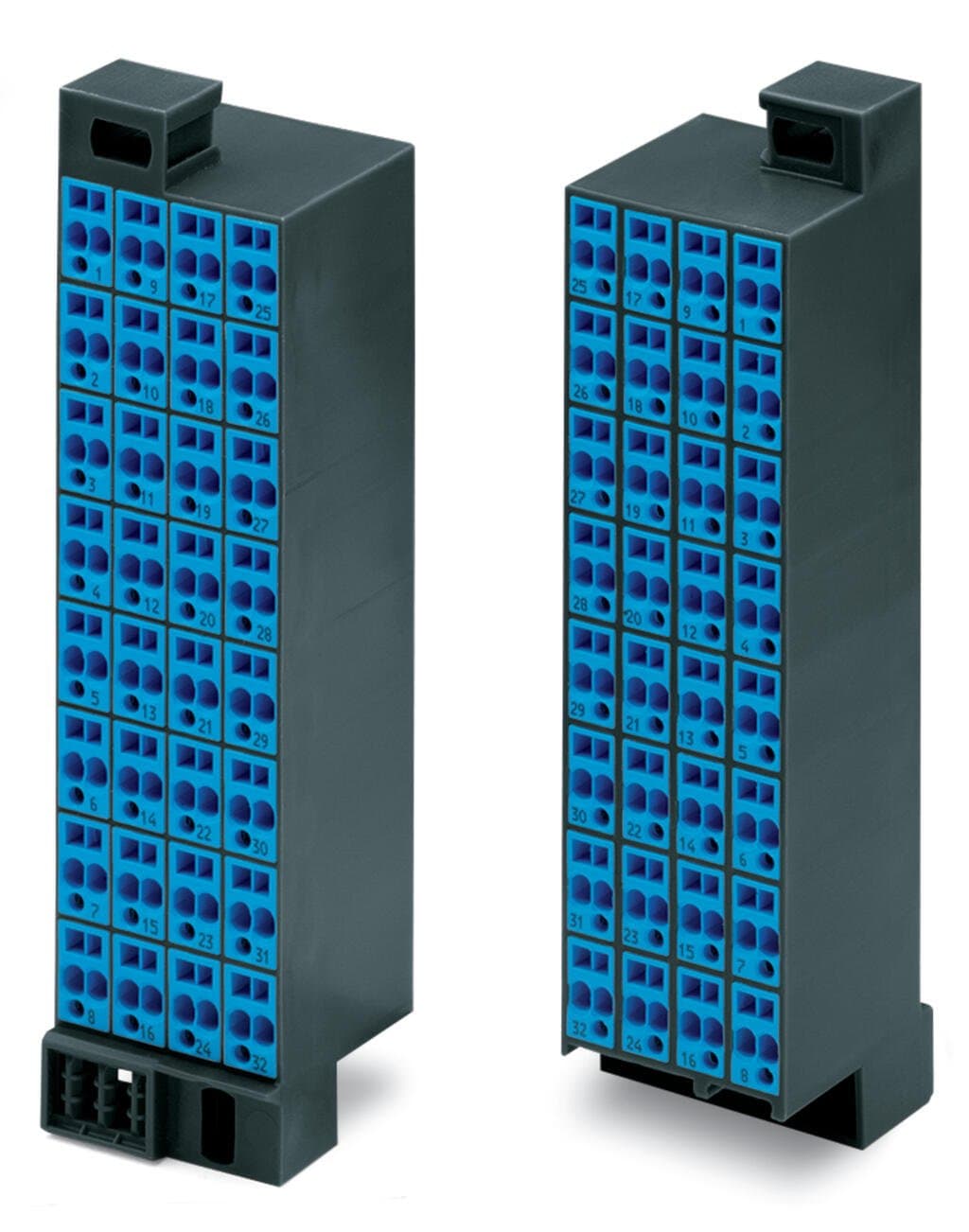

726-346
Key Features
- 1Slimline Design for 19" Racks: Compact and space-efficient for easy integration into 19" rack systems.
- 2Suitable for Ex i Applications: Meets stringent safety standards for explosive environments.
- 332-Pole Matrix Patchboard: Provides ample connection points for complex wiring configurations.
- 4CAGE CLAMP Technology: Secure and reliable connection method using CAGE CLAMP technology.
- 5Blue-Colored Modules: Visually distinct modules with blue coloration for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 34.6?mm?/ 1.362?inches | Height | 132?mm?/ 5.197?inches |
| Depth | 36.5?mm?/ 1.437?inches | Marking | 33 … 64 |
| Design | slimline | Note (material data) | Information on material specifications can be found here |
| Color | dark gray | Module color | blue |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 3.969MJ |
| Weight | 148g | eCl@ss 10.0 | 27-24-26-08 |
| eCl@ss 9.0 | 27-24-26-08 | ETIM 9.0 | EC001604 |
| ETIM 8.0 | EC001604 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 24?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4066966340235 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 10A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Connection type 1 | Page 1 | Connection technology | CAGE CLAMP? |
| Total number of connection points | 2 | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
| Number of poles | 32 | Wiring direction | Front-entry wiring |
| Connection type 2 | Side 2 | Number of connection points 2 | 2 |
| Solid conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor 2 | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Specifications may be subject to change without notice
