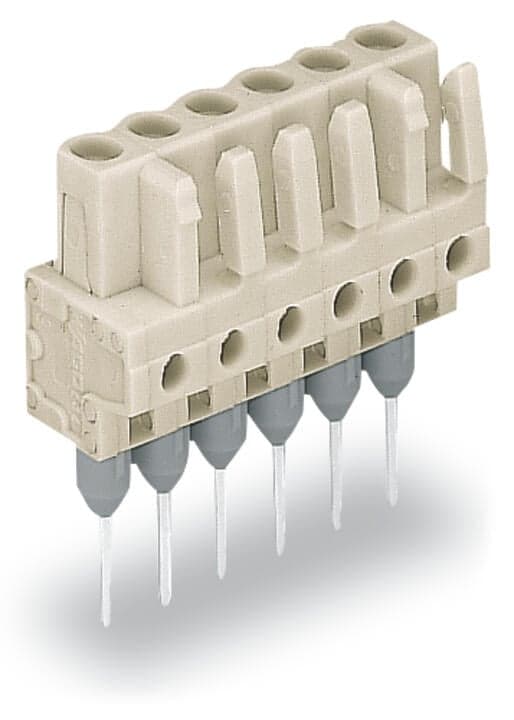

Product Model
722-150/005-000
Key Features
- 1100% protected against mismating for reliable connections.
- 220-pole female connector with 5 mm pin spacing.
- 3Equipped with a locking lever for secure plug-in connections.
- 4Straight pins measuring 0.6 x 1 mm for precise contact.
- 5Compatible with WAGO's MCS MIDI system for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 20 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 101.5?mm?/ 3.996?inches | Height | 32.75?mm?/ 1.289?inches |
| Height from the surface | 18.25?mm?/ 0.719?inches | Depth | 11.6?mm?/ 0.457?inches |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for front-entry rail-mount terminal block |
| Mismating protection | Yes | Plugging without loss of pin spacing | No |
| Locking of plug-in connection | none | Mating direction to the rail-mount terminal block | 90° |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Contact material | Copper alloy |
| Contact plating | Tin | Fire load | 0.546MJ |
| Weight | 20.7g | Limit temperature range | -60 … +85?°C |
| Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918570435 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Number of poles | 20 |
Specifications may be subject to change without notice
