Product Model

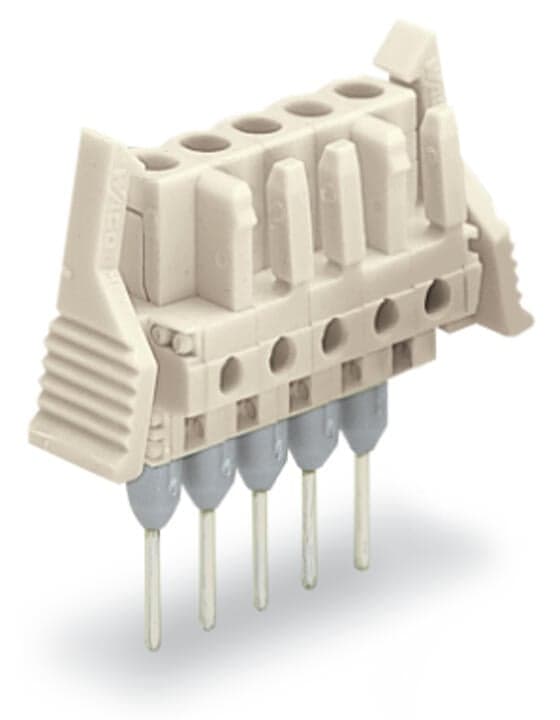

722-133/005-000/039-000
Key Features
- 1100% protected against mismating for secure connections.
- 2Equipped with a locking lever for easy and reliable connection.
- 3Compatible with rail-mount terminal blocks, ensuring seamless integration.
- 4Made from durable Polyamide (PA66) with UL94 V0 flammability class.
- 5RoHS compliant and manufactured in Germany for high standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 3 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 30.8?mm?/ 1.213?inches | Height | 36.1?mm?/ 1.421?inches |
| Height from the surface | 21.6?mm?/ 0.85?inches | Depth | 11.6?mm?/ 0.457?inches |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Female header | Connector (connection type) | for front-entry rail-mount terminal block |
| Mismating protection | Yes | Plugging without loss of pin spacing | No |
| Locking of plug-in connection | locking lever | Mating direction to the rail-mount terminal block | 90° |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Contact material | Copper alloy |
| Contact plating | Tin | Fire load | 0.109MJ |
| Weight | 4.1g | Limit temperature range | -60 … +85?°C |
| Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918571340 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Number of poles | 3 |
