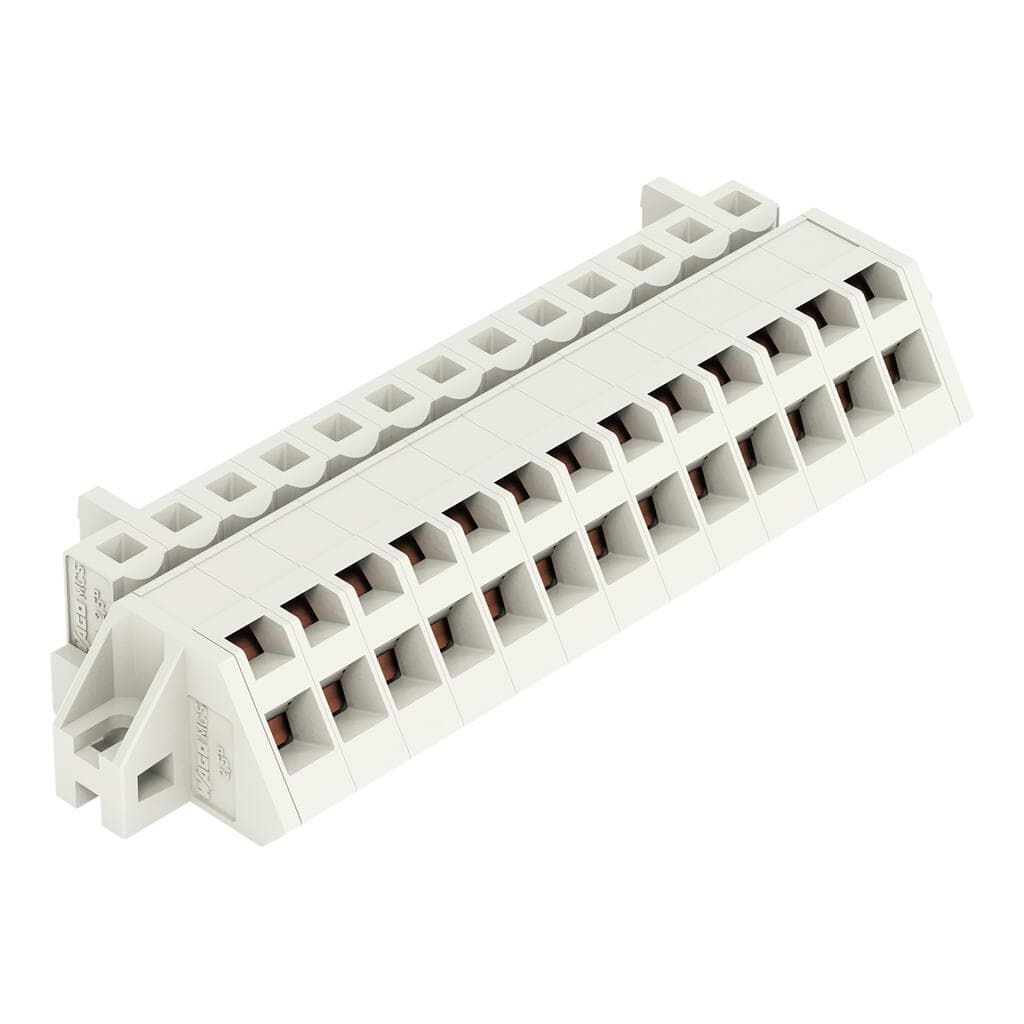

Product Model
721-313/031-000
Key Features
- 1100% Mismating Protection: Ensures secure and reliable connections.
- 2CAGE CLAMP Technology: Easy conductor termination with snap-in mounting feet or flanges.
- 3Angled Design: Ideal for panel or through-panel mounting applications.
- 413-Pole Configuration: Supports multiple connections with a single connector.
- 5UL and CSA Approvals: Meets safety standards for electrical and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Clamping units | 13 | Total number of potentials | 13 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 5?mm?/ 0.197?inches | Width | 79.8?mm?/ 3.142?inches |
| Height | 13.1?mm?/ 0.516?inches | Depth | 27.25?mm?/ 1.073?inches |
| Variable coding | No | Housing sheet thickness | 0.6 … 1.2?mm?/ 0.024 … 0.047?inches |
| Design | angled; mountable | Mounting type | Panel mounting |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Locking of plug-in connection | none |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper alloy | Contact plating | Tin |
| Fire load | 0.42MJ | Weight | 19.1g |
| Limit temperature range | -60 … +85?°C | Processing temperature | -35 … +60?°C |
| eCl@ss 10.0 | 27-44-03-09 | eCl@ss 9.0 | 27-44-03-09 |
| ETIM 9.0 | EC002638 | ETIM 8.0 | EC002638 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4055143903707 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Actuation direction 1 | Operation parallel to conductor entry |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
| Strip length | 7 … 8?mm?/ 0.28 … 0.31?inches | Number of poles | 13 |
| Conductor entry direction to mating direction | 90° |
