Product Model

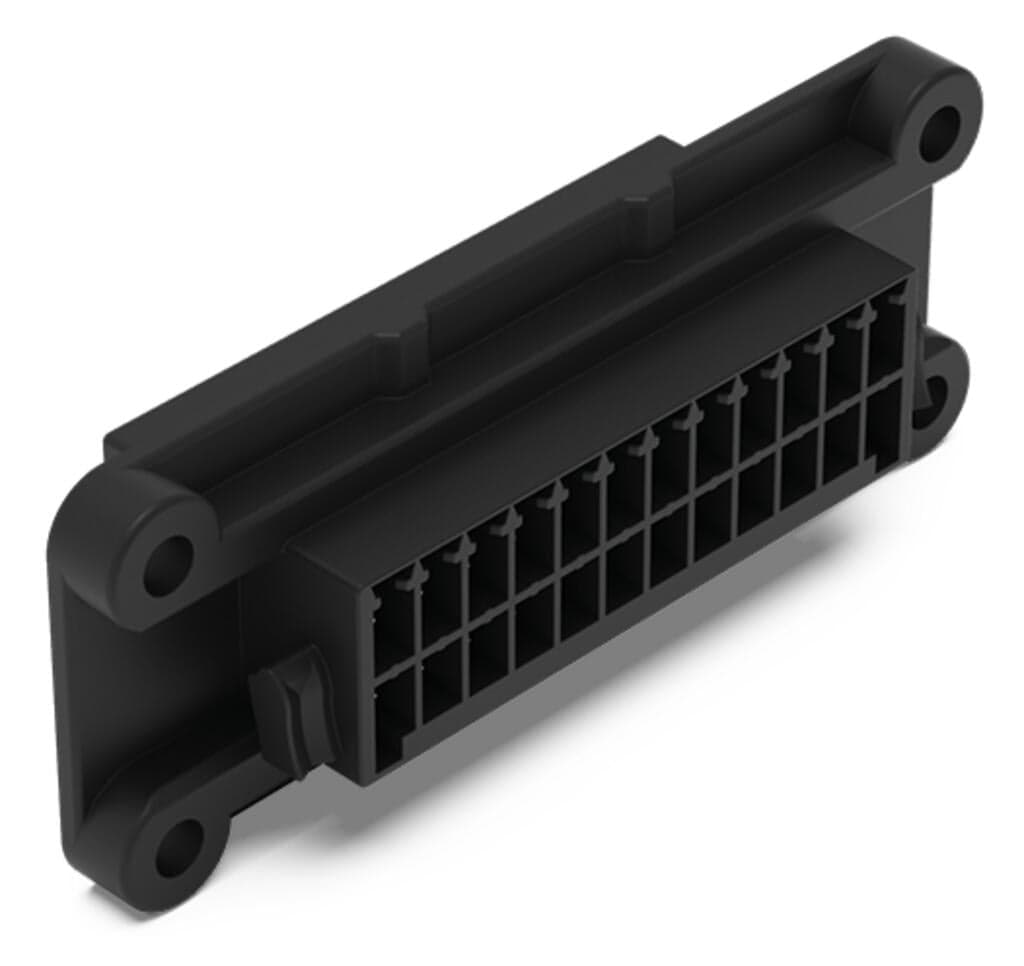

713-1498/037-000
Key Features
- 1100% Mismating Protection: Ensures secure and reliable connections.
- 236-Pole Design: Offers extensive connectivity options.
- 33.5mm Pin Spacing: Convenient for easy wiring and installation.
- 4Black Color: Durable and resistant to environmental factors.
- 5RoHS Compliance: Meets environmental standards for sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Total number of potentials | 36 |
| Number of connection types | 1 | Number of levels | 2 |
| Pin spacing | 3.5?mm?/ 0.138?inches | Width | 88.5?mm?/ 3.49?inches |
| Height | 26.6?mm?/ 1.047?inches | Depth | 20?mm?/ 0.787?inches |
| Variable coding | No | Mounting type | DIN-35 rail |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for pluggable connector | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Locking of plug-in connection | Locking lever |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Weight | 18.6g |
| Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143895743 | Customs tariff number | 85366930000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 250V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 50V |
| Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 10A | Number of poles | 36 |
Specifications may be subject to change without notice
