Product Model
713-1426/116-000/997-406
Key Features
- 1100% Mismating Protection: Ensures secure and reliable connections.
- 2Angled Solder Pins: Facilitates easy soldering in SMT applications.
- 3Tape-and-Reel Packaging: Convenient for automated PCB assembly.
- 4Black Color: Durable and resistant to environmental factors.
- 5UL and CSA Approvals: Meets safety standards for electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation

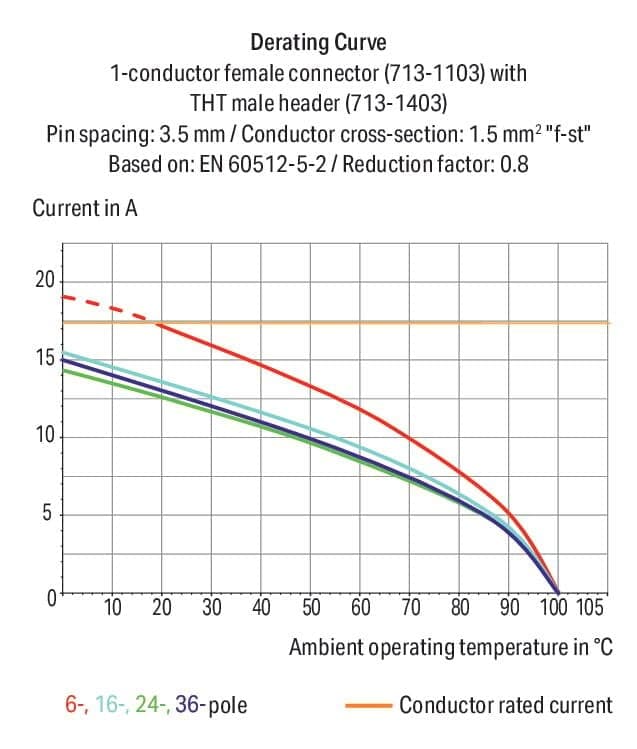

| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 12 | Number of connection types | 1 |
| Number of levels | 2 | Pin spacing | 3.5?mm?/ 0.138?inches |
| Width | 29.1?mm?/ 1.146?inches | Height | 15.7?mm?/ 0.618?inches |
| Height from the surface | 13.3?mm?/ 0.524?inches | Depth | 13.5?mm?/ 0.531?inches |
| Solder pin length | 2.4mm | Solder pin dimensions | 0.8 x 0.8?mm |
| Plated through-hole diameter (THR) | 1.3(+0.1)mm | Reel diameter of tape-and-reel packaging | 330mm |
| Tape width | 44mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for PCB | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
| Locking of plug-in connection | Locking lever | PCB contact | THR |
| Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 1 |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 8.76MJ |
| Weight | 3.8g | MSL per J-STD 020D | 1 |
| Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 120?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4050821309659 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 250V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 150V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 50V |
| Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 150V |
| Rated current CSA (Use Group B) | 12A | Number of poles | 12 |
