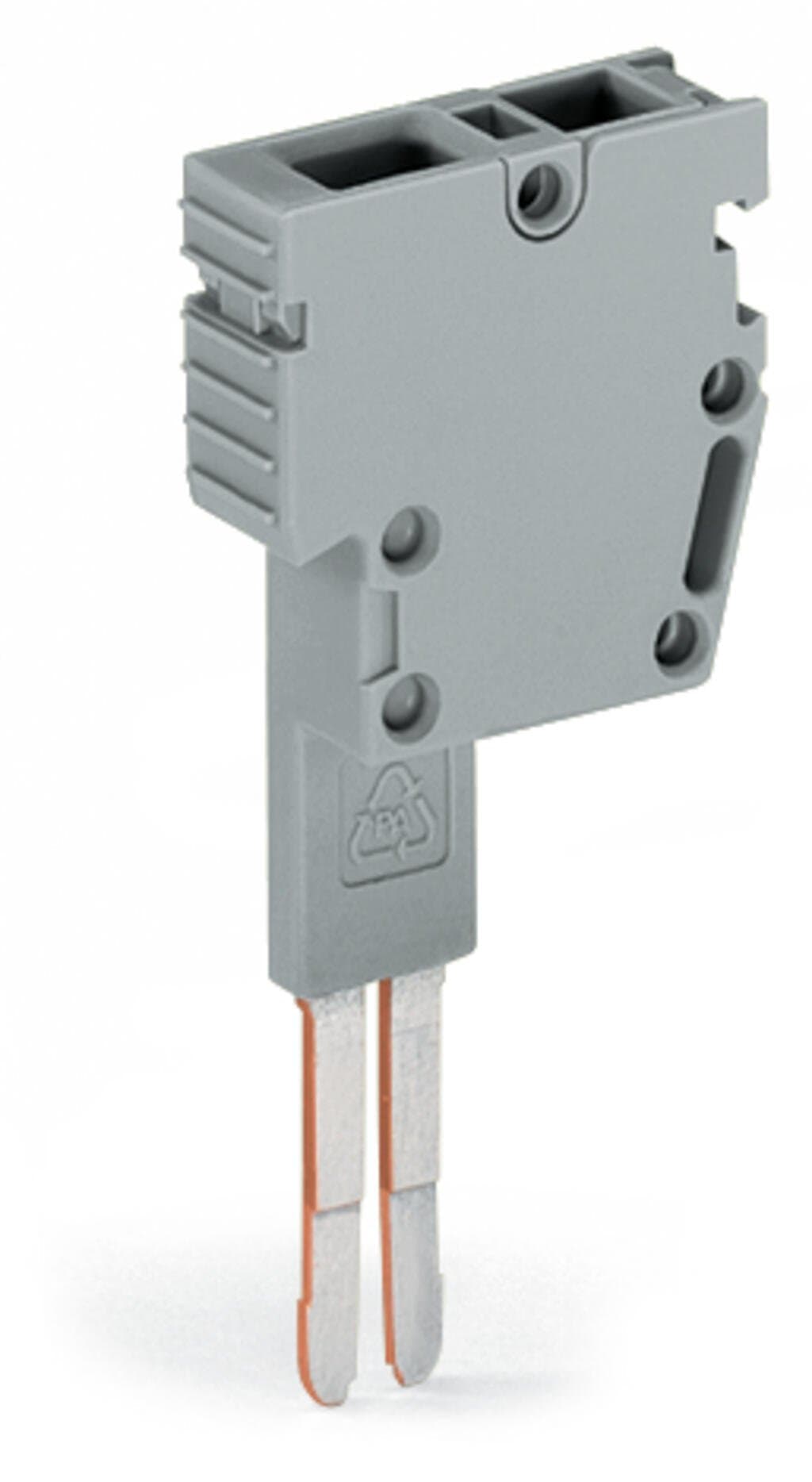

Product Model
709-310
Key Features
- 1Modular design for easy integration.
- 2Compatible with WAGO 282 Series rail-mounted terminal blocks.
- 36.00 mm² connection for reliable conductivity.
- 4Available in gray for easy identification.
- 5Ideal for jumper slot applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | These test plugs are not suitable for Ex e applications. | Clamping units | 1 |
| Total number of potentials | 1 | Width | 8?mm?/ 0.315?inches |
| Module width | 8?mm?/ 0.315?inches | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 0.135MJ | Weight | 4.9g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-48 |
| eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
| ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4045454267773 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Test voltage | 800V |
| Test current | 32A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
| Strip length | 12?mm?/ 0.47?inches | Number of poles | 1 |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
