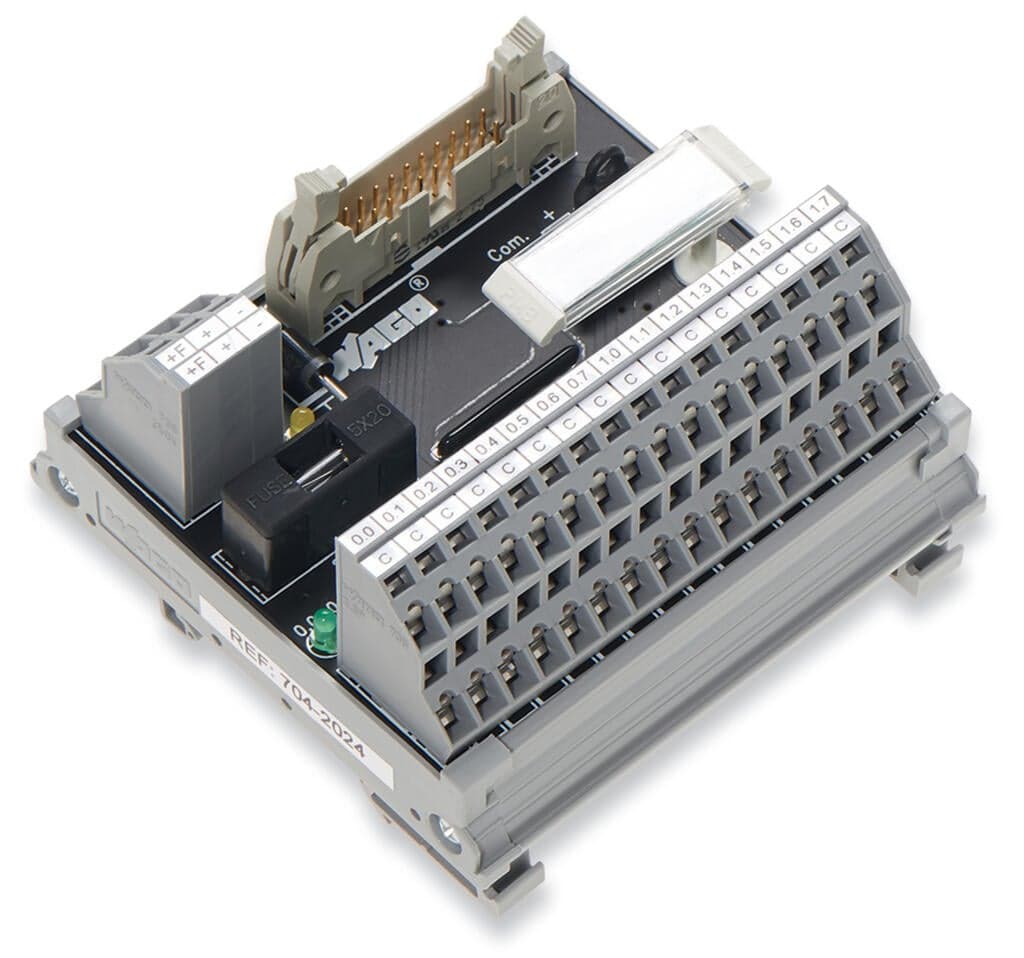

Product Model
704-2024
Key Features
- 1Mounts seamlessly on DIN-35 rail for easy installation.
- 2Offers 16 channels of digital input/output for versatile connectivity.
- 3Simplifies wiring with a 2-wire connection configuration.
- 4Features a pluggable connector per DIN 41651 for secure connections.
- 5Built with a robust design to withstand various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Inputs/outputs | 16-channel digital input or output | Circuit type | 2-wire connection |
| Nominal operating voltage | DC?24?V | Operating voltage range | ±10?% |
| Current consumption (status indication) | 5mA | Total current | 2A |
| Limiting continuous current | 1?A | Status indicator | Green LED (channel) |
| Internal fuse | 2?A | Rated voltage | 50V |
| Rated surge voltage | 0.8kV | Pollution degree | 2 |
| Width | 85?mm?/ 3.346?inches | Height | 85?mm?/ 3.346?inches |
| Depth from upper-edge of DIN-rail | 50?mm?/ 1.969?inches | Mounting type | DIN-35 rail |
| Fire load | 1.976MJ | Weight | 112.3g |
| Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | 85% (non-condensing) | Product Group | 30 (WAGO France) |
| eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
| ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | FR |
| GTIN | 4050821220657 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Siemens S7-300 | 6ES7 313-5BE01-0AB0 |
| Siemens S7-400 | 6ES7 421-1BL01-0AA0 | Siemens S7-1500 | 6ES7 511-1CK00-0AB0 |
| Siemens ET200SP | 6ES7 131-6BH01-0BA0 | GE Fanuc 9030 | IC693 MDL241 |
| GE Fanuc RX3i | IC694 MDL655 | Schneider Modicon TM3 | TM3 DI16(G) |
| Schneider Modicon M340 | BMX DDI 1602 | Schneider Modicon Quantum | 140 DDI 353 00 |
| Schneider TSX | TSX DEY 16D2 | Schneider Twido | TM2 DDI 16DK |
| Rockwell Compact Logix | 1769 - IQ16 | Rockwell Control Logix | 1756 - IB16I |
| Omron CJ1W | CJ1W-ID211 | WAGO I/O System 750 | 750-1400 |
| WAGO I/O System 753 | 753-430 (x2) | Pluggable connector | DIN 41651 connector; male connector |
| Pole number 1 | 20 | Connection type 1 | System |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
| Design 2 | PCB terminal blocks (double-deck) | Pole number (2) | 32 |
| Connection type 2 | Field | WAGO connector 2 | WAGO 736 Series |
| Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches | Design 3 | PCB terminal blocks (double-deck) |
| Pole number (3) | 6 | Connection type 3 | Power supply |
| WAGO connector 3 | WAGO 736 Series | Solid conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor 3 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 3 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
