Product Model

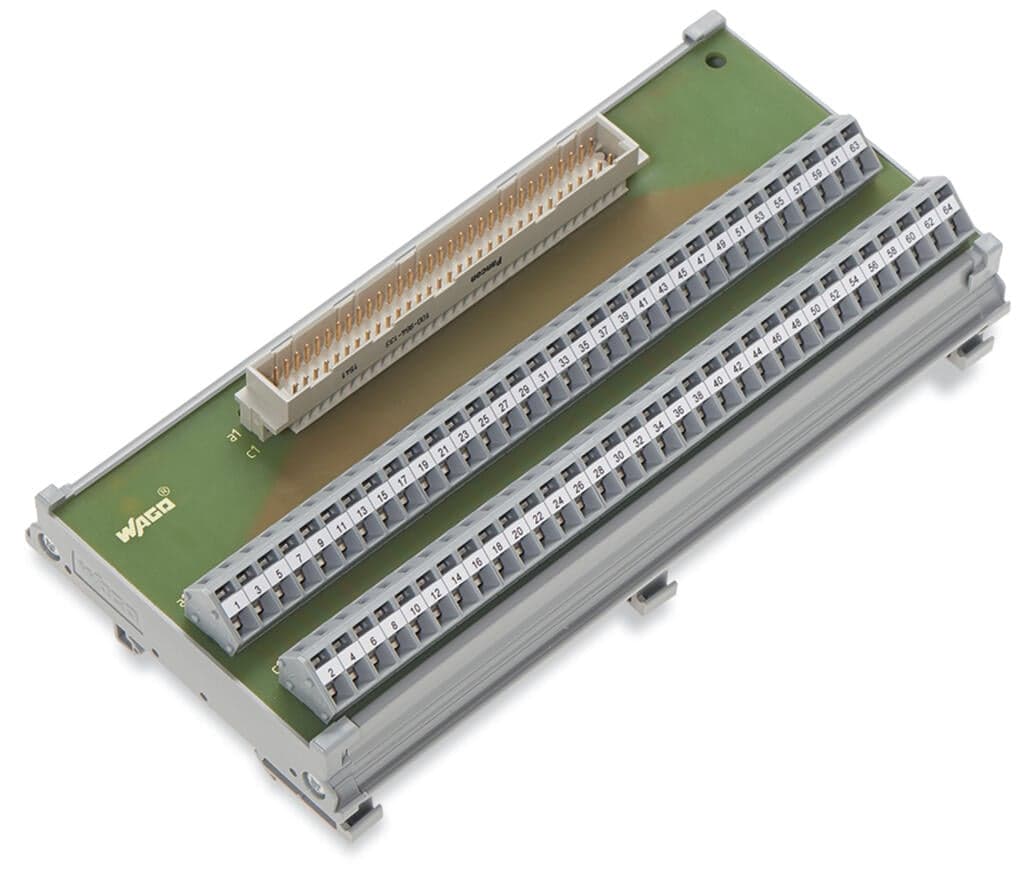

289-526
Key Features
- 164-Pole DIN 41612 Connector: Compatible with DIN 41612 standards, ensuring seamless integration in industrial systems.
- 2Vertical Mounting: Conveniently mountable on DIN-35 rail for efficient space utilization.
- 3Solder Connection: Supports mating connectors with solder contact for secure electrical connections.
- 4IP20 Protection: Rated IP20 for reliable protection against solid particles and dust.
- 5Wide Operating Range: Operates within AC 100 V and DC 125 V, suitable for various industrial voltage requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating voltage | ≤100?VAC;?≤125?VDC | Nominal current | 1A |
| Contact resistance (max.) | 20?mΩ | Rated voltage | 100V |
| Rated surge voltage | 0.8kV | Pollution degree | 2 |
| Protection type | IP20 | Performance level | 2 / 400 mating cycles |
| Width | 171?mm?/ 6.732?inches | Height | 85?mm?/ 3.346?inches |
| Depth from upper-edge of DIN-rail | 34?mm?/ 1.339?inches | Mounting type | DIN-35 rail |
| Housing design | Mounting carrier | Contact material (connector) | Copper alloy; gold plated |
| Fire load | 2.08MJ | Weight | 154.5g |
| Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | 85% (non-condensing) | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
| ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454385118 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | Pluggable connector per DIN 41612; Type C; Male connector |
| Pole number 1 | 64 | Connection type 1 | System |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
| Design 2 | PCB terminal blocks (double-row) | Pole number (2) | 64 |
| Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
| WAGO connector 2 | WAGO 236 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
