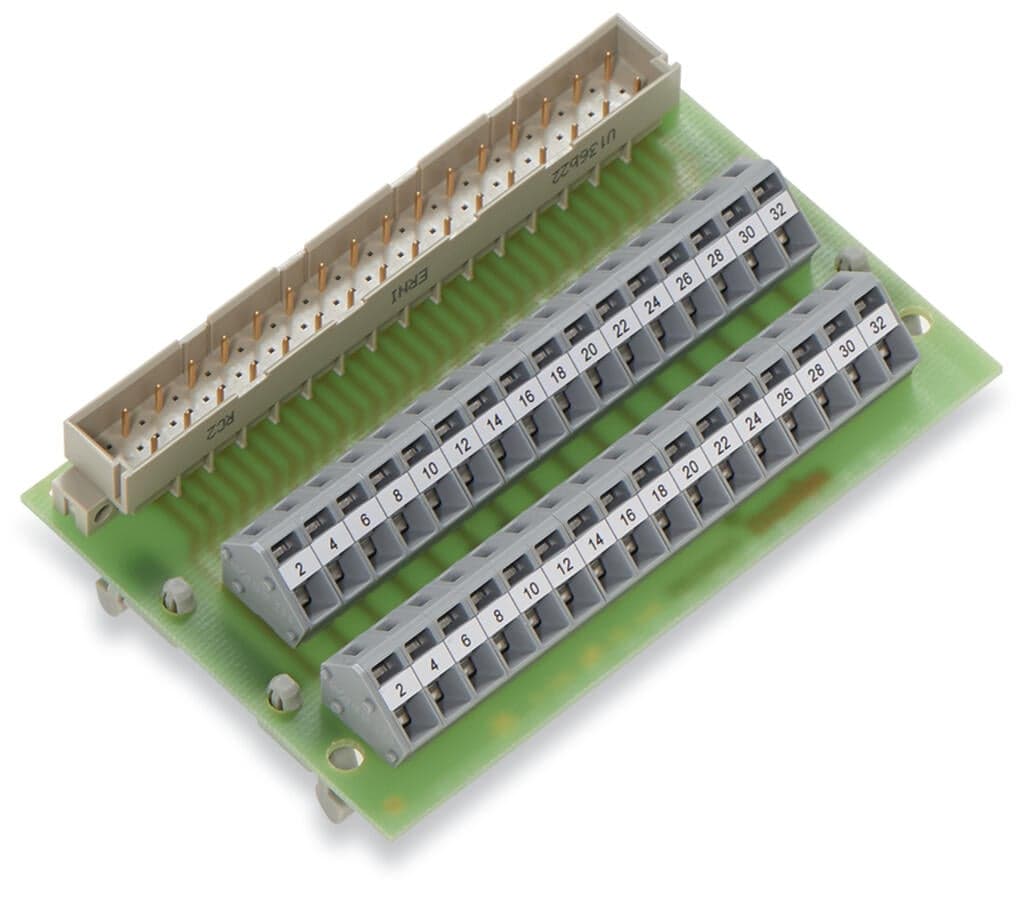

Product Model
289-426
Key Features
- 164-Pole Pluggable Connector: Compatible with DIN 41612, ensuring reliable and secure connections.
- 2Vertical Mounting: Convenient for space-saving designs in industrial settings.
- 3Double-Row PCB Terminal Blocks: Easy to use and configure, with mounting feet for stability.
- 4Solder Connection: Durable and efficient solder connection for long-lasting performance.
- 5Type C Connector: Meets industry standards for high-pole connectivity solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating voltage | ≤30?VAC;?≤50?VDC | Nominal current | 1A |
| Contact resistance (max.) | 20?mΩ | Rated voltage | 50V |
| Rated surge voltage | 0.8kV | Pollution degree | 2 |
| Protection type | IP00;Notice!Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application. | Performance level | 2 / 400 mating cycles |
| Width | 187?mm?/ 7.362?inches | Height | 63.5?mm?/ 2.5?inches |
| Depth from upper-edge of DIN-rail | 21?mm?/ 0.827?inches | Mounting type | DIN-35 rail |
| Housing design | PCB with mounting feet | Contact material (connector) | Copper alloy; gold plated |
| Fire load | 0.084MJ | Weight | 111.9g |
| Ambient temperature (operation) | -20 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | 85% (non-condensing) | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-14-11-52 | eCl@ss 9.0 | 27-14-11-52 |
| ETIM 9.0 | EC002780 | ETIM 8.0 | EC002780 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454385071 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | Pluggable connector per DIN 41612; Type C; Male connector |
| Pole number 1 | 64 | Connection type 1 | System |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Mating direction | vertical |
| Design 2 | PCB terminal blocks (double-row) | Pole number (2) | 64 |
| Connection type 2 | Field | Connection technology 2 | CAGE CLAMP? |
| WAGO connector 2 | WAGO 236 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
