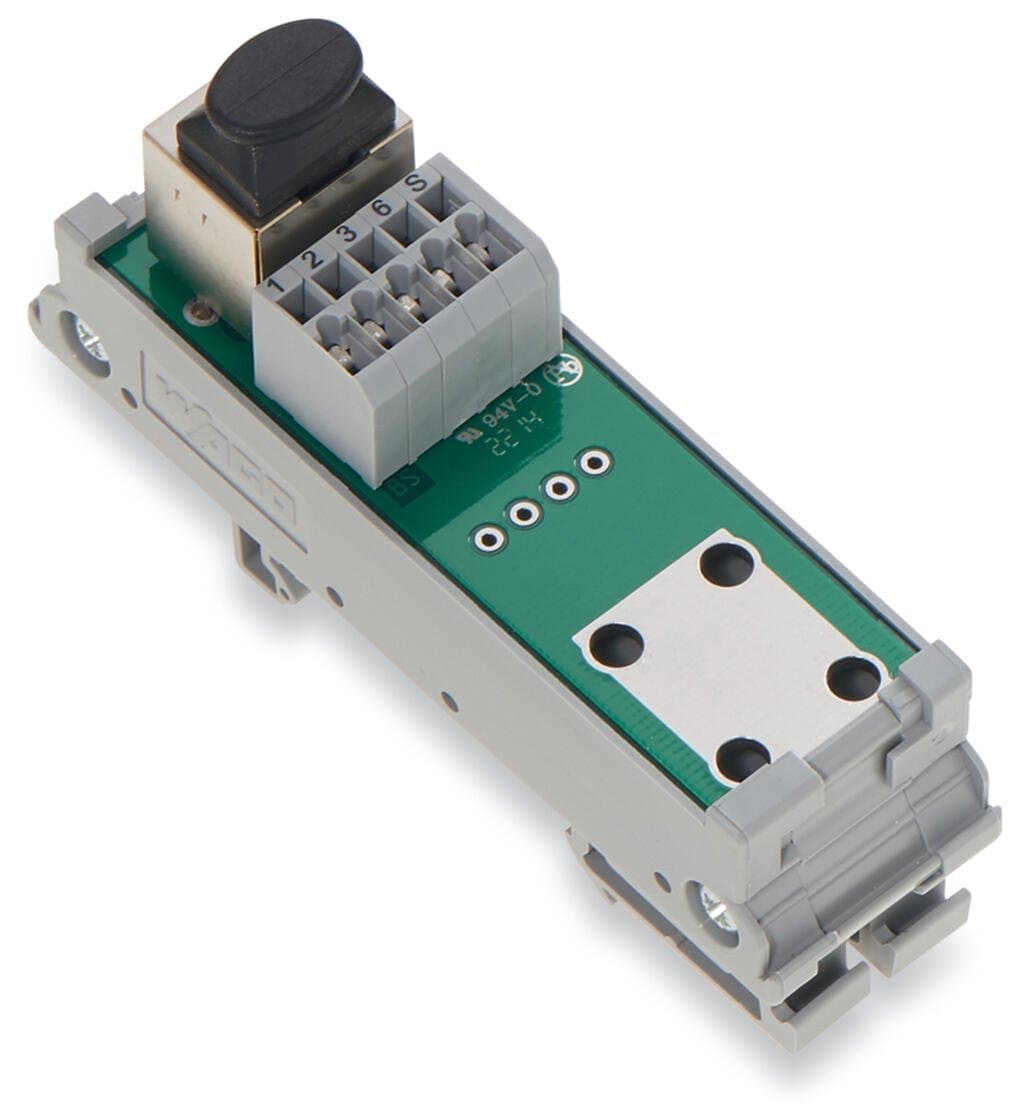

Product Model
289-174
Key Features
- 1High-Quality Shielded Connections: Ensures reliable and secure data transmission.
- 2DIN-35 Rail Mounting: Easy installation on standard DIN rails.
- 3Robust Insulation Resistance: ≥ 500 MΩ for reliable operation in harsh environments.
- 4Ambient Temperature Range: Operates from -40°C to +85°C for versatile use.
- 5Cat. 5 Connection Cable: Supports high-speed Ethernet connectivity up to 100 m.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal current | 1.5A | Insulation resistance | ≥?500?MΩ |
| Specialty functions | with shield connection | Dielectric strength (contact/contact) (AC, 1 min) | 1kV<sub>rms</sub> |
| Mating cycles | 500 | Transmission length (max.) | 100m |
| Connection cable | Cat. 5 (min.) | Width | 24?mm?/ 0.945?inches |
| Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches |
| Mounting type | DIN-35 rail | Housing design | Mounting carrier |
| Fire load | 0.776MJ | Weight | 32.6g |
| Ambient temperature (operation) | -40 … +85 °C (Actuation: ?35 … +85 °C) | Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 85% (non-condensing) | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 19-17-90-01 | eCl@ss 9.0 | 19-17-90-01 |
| ETIM 9.0 | EC001121 | ETIM 8.0 | EC001121 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454317492 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Pluggable connector | RJ-45 (shielded) |
| Pole number 1 | 8 | Connection type 1 | System |
| Design 2 | PCB terminal blocks | Pole number (2) | 5 |
| Connection type 2 | System | Connection technology 2 | CAGE CLAMP? |
| WAGO connector 2 | WAGO 739 Series | Solid conductor 2 | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor 2 | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length 2 | 5 … 6?mm?/ 0.2 … 0.24?inches |
Specifications may be subject to change without notice
