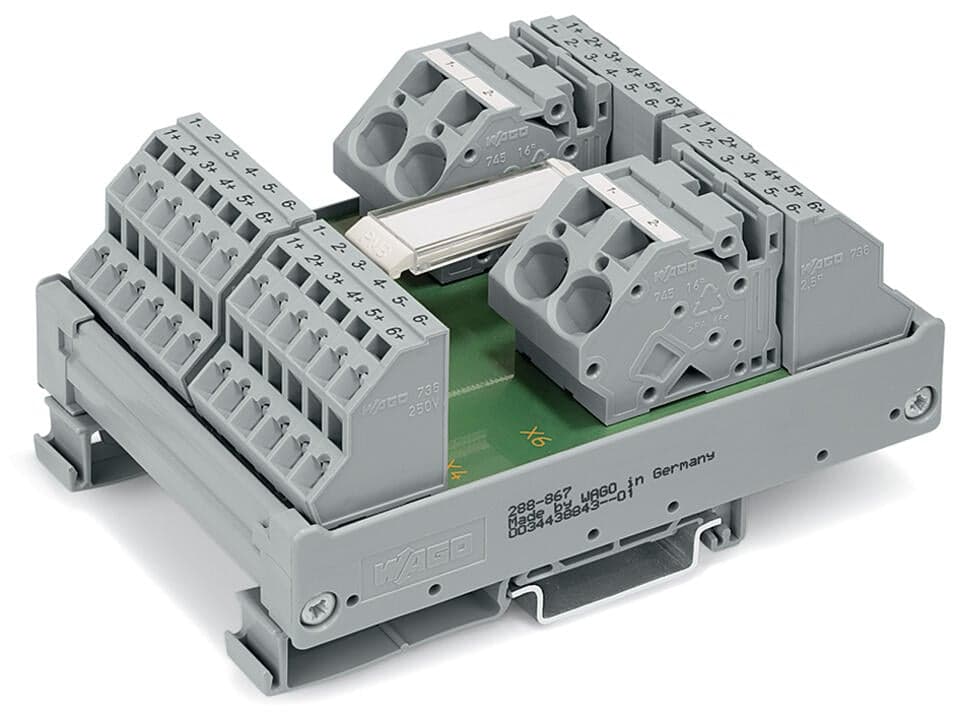

Product Model
288-867
Key Features
- 1Distributes electrical potentials with 4 potential groups and 6 connection points each.
- 2Compatible with electronic circuit breakers for 24 and 0 VDC power distribution.
- 3Secure wiring with CAGE CLAMP spring connections.
- 4On-unit commoned minus potential with optional commoning to adjacent modules via comb-style jumper bar.
- 5Compact design, mounted on DIN-35 rail with a width of 70mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal operating voltage | DC?24?V | Current per connection (max.) | 10A |
| Total current per potential (max.) | 10A | Total current 0 V (max.) | 40A |
| Rated voltage | 50V | Rated surge voltage | 0.8kV |
| Pollution degree | 2 | Total number of potentials | 4 |
| Clamping units | 6 | Connection type 1 | Connection points |
| Mating direction | 45° | Connection technology | CAGE CLAMP? |
| WAGO connector | WAGO 736 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
| Connection type 2 | Negative potential | Mating direction 2 | vertical |
| Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 745 Series |
| Solid conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG |
| Strip length 2 | 12 … 13?mm?/ 0.47 … 0.51?inches | Note (conductor cross-section) | 12 AWG: THHN, THWN |
| Width | 70?mm?/ 2.756?inches | Height | 105?mm?/ 4.134?inches |
| Depth from upper-edge of DIN-rail | 50?mm?/ 1.969?inches | Mounting type | DIN-35 rail |
| Housing design | Mounting carrier | Fire load | 1.199MJ |
| Weight | 136.2g | Ambient temperature (operation) | -20 … +50 °C |
| Ambient temperature (storage) | -40 … +70 °C | eCl@ss 10.0 | 27-14-11-52 |
| eCl@ss 9.0 | 27-14-11-52 | ETIM 9.0 | EC002780 |
| ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821889687 |
| Customs tariff number | 8537109150 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
