Product Model

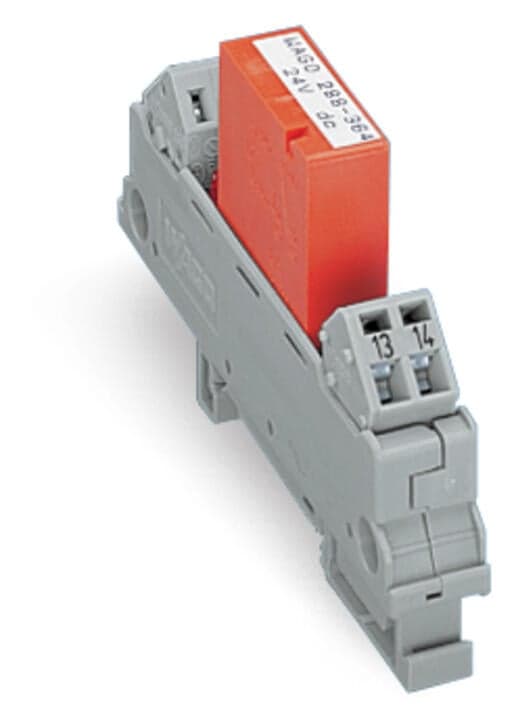

288-364
Key Features
- 1High-Performance Switching: The WAGO 288-364 relay module offers reliable and efficient switching with a 5A continuous current.
- 2DIN Rail Mounting: Easily integrate into your industrial setup with its DIN rail mounting for secure and space-saving installation.
- 324VDC Input: Compatible with 24VDC power distribution, making it versatile for various industrial control systems.
- 4Silver Nickel Contacts: Ensures long-lasting performance with silver nickel contacts that resist corrosion and wear.
- 5Compliant with Regulations: Meets RoHS and EU ECCN standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated voltage | 300V | Overvoltage category | II |
| Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Connection technology | CAGE CLAMP? | WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 13?mm?/ 0.512?inches |
| Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 47?mm?/ 1.85?inches |
| Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.515MJ |
| Weight | 30.6g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C |
| Ambient temperature (storage) | -25 … +70 °C | Processing temperature | -25 … +50?°C |
| Temperature range of connection cable | ≥ (Tambient+ 30 K) | Relative humidity | 5 … 75?% (non-condensing) |
| Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
| ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 15?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454468040 |
| Customs tariff number | 8536490050 | End of Sale | 2025-06-30 |
| End of Production | 2025-10-01 | End of Delivery | 2025-10-30 |
| End of Service and Repair | 2026-10-31 | CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) | SCIP notification number (Austria) | 2f30d8f9-b28a-436a-8a07-58d4d6ad3508 |
| SCIP notification number (Belgium) | b109c886-a820-4d20-875e-1c770d4bb4bb | SCIP notification number (Bulgaria) | 99c47011-1971-427d-8364-2a453bd4ddff |
| SCIP notification number (Czech Republic) | 8b0e400c-6610-4efe-aaf4-e09ef3f4271c | SCIP notification number (Denmark) | 842789cd-75c4-4009-a398-dfc7071d5f0d |
| SCIP notification number (Finland) | 4ef5ab87-001f-4f47-a4aa-876f3b91966e | SCIP notification number (France) | 55410be8-a508-45cd-8545-5ad843752531 |
| SCIP notification number (Germany) | 890b0f9f-fd86-410a-9867-cd920f5c2b67 | SCIP notification number (Hungary) | 472c8994-308d-415a-9cc4-b981b923b738 |
| SCIP notification number (Italy) | 8a2d1f0c-488b-483d-8417-d1a846ff39b4 | SCIP notification number (Netherlands) | cb2e207a-6e64-49d3-93b2-cae7ac5f4cc6 |
| SCIP notification number (Poland) | 4b04aa0c-8767-4483-b522-4d639928a5ae | SCIP notification number (Romania) | 7be0d63c-a284-44b4-be09-b156676a377e |
| SCIP notification number (Sweden) | a2a46a5c-1913-4d96-9622-1f10cc4531b9 | Nominal input voltage U<sub>N</sub> | DC?24?V |
| Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 20?mA |
| Number of make/switch-on contacts | 1 | Contact material (relay) | AgNi 0.15 |
| Limiting continuous current | 5?A | Inrush current (resistive) max. | (AC) 16?A?/ 4?s |
| Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?1250?VA |
| Pull-in time (typ.) | 4ms | Drop-out time (typ.) | 6ms |
| Bounce time (typ.) | 2ms | Electrical life (NO; resistive load; 23?°C) | 200?x 103 switching operations |
| Mechanical life | 30?x 10? switching operations |
Specifications may be subject to change without notice
