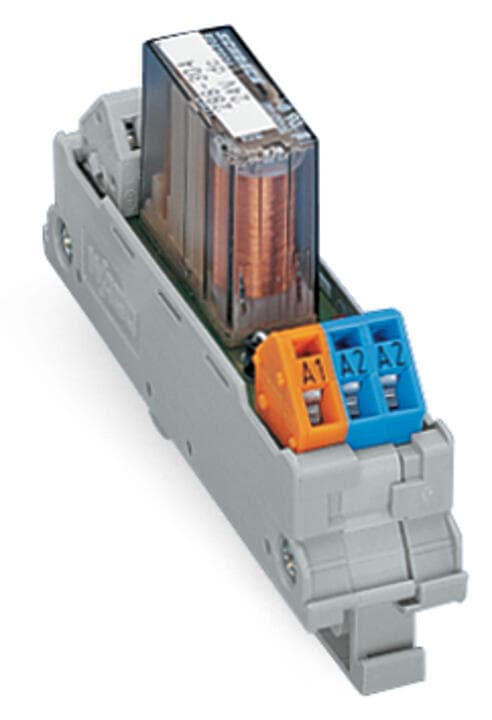

Product Model
288-320
Key Features
- 1High-Performance Relay Module: The WAGO 288-320 is a reliable, single-pole, normally open (SPST-NO) electromechanical relay designed for control voltages between 21.6-26.4Vdc (24Vdc nominal).
- 2Secure Wiring: Utilizes CAGE CLAMP connections for secure wiring and meets EN 60664-1 standards.
- 3Durable Contacts: Features Silver-Tin (AgSnO) contacts with a mechanical life of 30 x 10^6 switching operations.
- 4Efficient Power Handling: Supports a limiting continuous current of 16 A and a maximum make current of 25 A (AC) / 4 s.
- 5Compact Design: Measuring 20.5 mm in width, 47 mm in height, and 85 mm in depth, making it ideal for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated voltage | 300V | Rated surge voltage | 4kV |
| Overvoltage category | II | Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1?min) | 3?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Connection technology | CAGE CLAMP? | WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 20.5?mm?/ 0.807?inches |
| Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 47?mm?/ 1.85?inches |
| Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
| Fire load | 0.772MJ | Weight | 17.4g |
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -25 … +70 °C |
| Processing temperature | -25 … +50?°C | Standards/specifications | EN 61010-2-201 |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
| ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454362492 |
| Customs tariff number | 8536490050 | CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) | SCIP notification number (Austria) | 87a1da90-7ef9-4daf-8a5f-a8146a38ebb7 |
| SCIP notification number (Belgium) | a5ec296d-71cb-4bd9-937b-aa0fd266dc94 | SCIP notification number (Bulgaria) | 654805e2-ca56-4bea-b040-92f836ebe94c |
| SCIP notification number (Czech Republic) | f0143311-fe55-4984-89cc-3bec355a1d74 | SCIP notification number (Denmark) | d842c17f-bd2e-4fc3-b8f8-b479662d8a69 |
| SCIP notification number (Finland) | 119c8c06-5bd5-4c50-b0b0-1450cc2c3485 | SCIP notification number (France) | e9457767-c369-4282-810c-8ffd6aeb1312 |
| SCIP notification number (Germany) | 26ac1af8-1f13-4c1e-93a7-182339e9ab2a | SCIP notification number (Hungary) | c1e792b4-a3c3-4588-9961-c9b6c92b9f1f |
| SCIP notification number (Italy) | a154d057-a067-4b77-bc87-2fe4e05bb71b | SCIP notification number (Netherlands) | 83c45180-a7d9-46c2-b289-07e354bfd7b2 |
| SCIP notification number (Poland) | ed3246a7-c8e9-4776-b82b-9e9269447f56 | SCIP notification number (Romania) | 0f2155a6-15bd-425b-9099-8e96818463bb |
| SCIP notification number (Sweden) | 19fdef96-3c43-4e4b-8d3a-5bc647bfb1d0 | Nominal input voltage U<sub>N</sub> | DC?24?V |
| Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 22?mA |
| Number of make/switch-on contacts | 1 | Contact material (relay) | AgSnO2 |
| Limiting continuous current | 16?A | Inrush current (resistive) max. | (AC) 25?A?/ 4?s |
| Switching Voltage, Max. | AC?400?V | Switching power (resistive) max. | AC?4000?VA;?DC (see load limit curve) |
| Recommended minimum load | 12?V?/ 100?mA | Pull-in time (typ.) | 8ms |
| Drop-out time (typ.) | 2ms | Bounce time (typ.) | 2ms |
| Mechanical life | 30?x 10? switching operations |
Specifications may be subject to change without notice
