Product Model

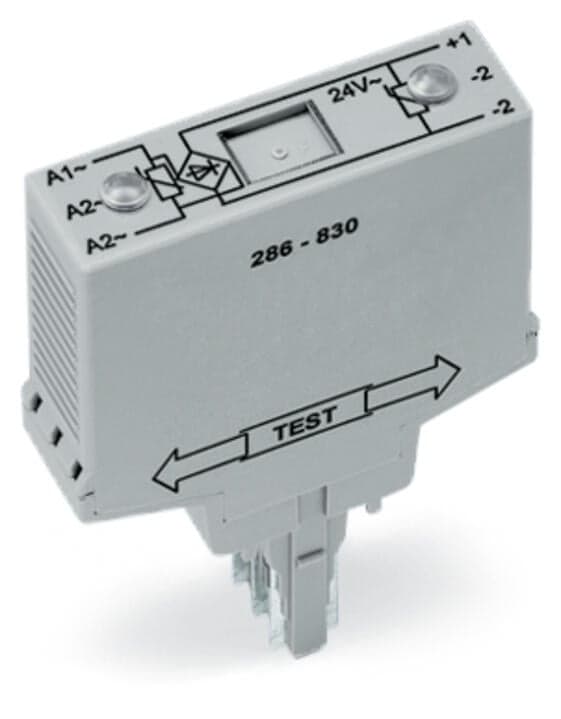

286-830
Key Features
- 1Input Voltage Compatibility: Compatible with 24VAC input voltage.
- 2Varistor Protective Circuit: Equipped with a varistor protective circuit for overvoltage protection.
- 3Gray Color: Available in a durable gray color.
- 4Plug-in Mounting System: Features a plug-in mounting system for easy installation.
- 5Reliable Performance: Designed for reliable performance in control voltage applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal operating voltage | AC?24?V | Operating voltage | ≤35?VAC |
| Nominal current | 1A | Width | 15?mm?/ 0.591?inches |
| Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.25 inches |
| Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
| Housing design | Plug for carrier terminal blocks | Color | gray |
| Fire load | 0.336MJ | Weight | 21.6g |
| Ambient temperature (operation) | -25 … +40 °C | Relative humidity | 5 … 95?% (no condensation permissible) |
| Operating altitude (max.) | 2000m | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 15?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454549848 | Customs tariff number | 8536904000 |
| CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
| SCIP notification number (Bulgaria) | 0eeb444a-f734-44df-b87e-e101d818615a | SCIP notification number (Czech Republic) | 2f85f016-c0bd-4538-b224-c47eda8ae1b4 |
Specifications may be subject to change without notice
