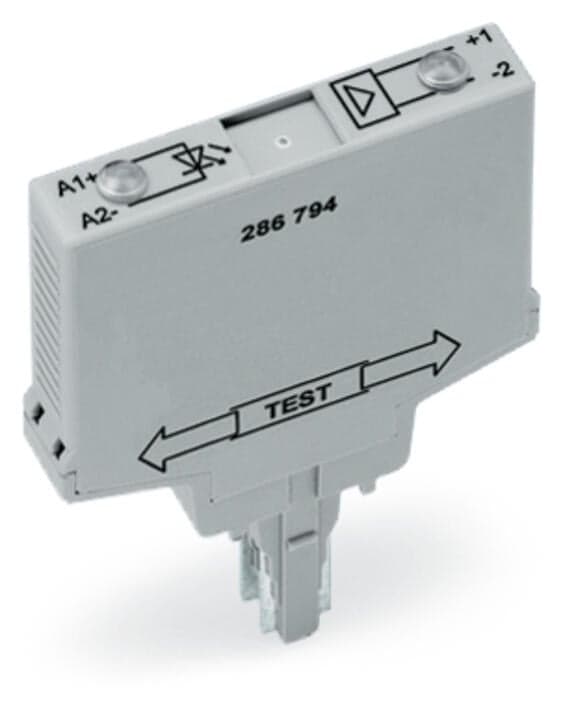

Product Model
286-794
Key Features
- 1Ensures safe electrical isolation between input and output.
- 2Operates with a nominal input voltage of 24 VDC and output range of 20-60 VDC.
- 3Compact size with a width of 10 mm, suitable for space-constrained applications.
- 4Supports a maximum switching current of 0.1 A, making it versatile for various control needs.
- 5Available for immediate shipment with a delivery time of 7 days.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms |
| Protection type | IP20 | Width | 10?mm?/ 0.394?inches |
| Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.25 inches |
| Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 7.69MJ | Weight | 16.3g |
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +60 °C | Ambient temperature (storage) | -25 … +40 °C |
| Processing temperature | -25 … +50?°C | Relative humidity | 5 … 95?% (no condensation permissible) |
| Operating altitude (max.) | 2000m | Standards/specifications | EN 60664-1 |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
| ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?(1)?pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4045454586218 |
| Customs tariff number | 8541500080 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I | SCIP notification number (Austria) | f54b28c9-4c92-44cb-b8d7-7b59e777376a |
| SCIP notification number (Belgium) | 9b24cf1a-1864-42b0-b01f-d2095c5fe557 | SCIP notification number (Bulgaria) | 173c4e10-4ca6-4661-8778-35cab922570e |
| SCIP notification number (Czech Republic) | 06434e36-91e4-4d82-aa08-0b38ce9e1ca1 | SCIP notification number (Denmark) | 1237ca67-e490-4514-ba5d-10a1b57cf759 |
| SCIP notification number (Finland) | 27854738-407e-4b59-a537-83e008675445 | SCIP notification number (France) | 3a3be8f5-749c-4abe-af8f-4415548150ff |
| SCIP notification number (Germany) | cbbbf94c-8fe6-4ff1-b393-70d51391537d | SCIP notification number (Hungary) | 600ddbb4-d8bb-4e51-8864-75af22716710 |
| SCIP notification number (Italy) | 15c98fb6-bcb0-4148-b90e-ed2b61cf119b | SCIP notification number (Netherlands) | ded82c66-e9b0-4d9b-a46a-de31f8a64e0a |
| SCIP notification number (Poland) | d79ba95b-93b2-4a22-8ca8-fc5a16b9ce05 | SCIP notification number (Romania) | 5ecf1c91-69ec-4a83-b068-6d2f348f925b |
| SCIP notification number (Sweden) | 8a4e69e9-e7aa-4c40-a0a0-8c16f31d4d41 | Nominal input voltage U<sub>N</sub> | DC?24?V |
| Input voltage range (high level) | DC?18 … 30?V | Nominal input current at U<sub>N</sub> | 4?mA |
| Circuit type | 2-wire connection | Limiting continuous current | 0.1?A |
| Output voltage range | DC 20 … 60?V | Voltage drop | ≤ 2?VDC |
| Leakage current at rated voltage | ≤?2?μA | Turn-on time | ≤?80?μs |
| Turn-off time | ≤?100?μs | Switching frequency | ≤?1.5?kHz |
Specifications may be subject to change without notice
