Product Model

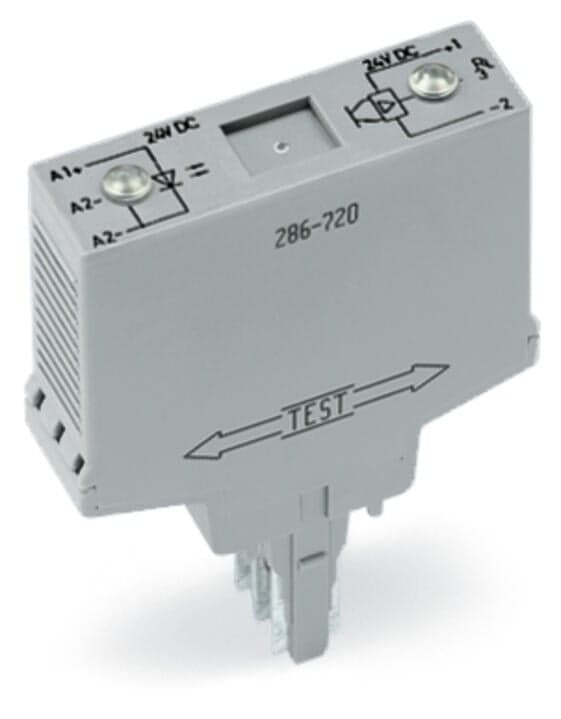

286-721
Key Features
- 1Compact Design: 15mm width for easy integration into control systems.
- 2Reliable Performance: 3-wire low-side switching with a continuous current of 5A.
- 3Wide Voltage Range: Operates within 15-40V DC control voltage range.
- 4High Efficiency: Red status indicator for real-time monitoring and quick response times.
- 5Durable Construction: IP20 protection rating for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms |
| Protection type | IP20 | Width | 15?mm?/ 0.591?inches |
| Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.25 inches |
| Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 5.929MJ | Weight | 29.2g |
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -25 … +40 °C |
| Processing temperature | -25 … +50?°C | Relative humidity | 5 … 95?% (no condensation permissible) |
| Operating altitude (max.) | 2000m | Standards/specifications | EN 60664-1 |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
| ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 15?(1)?pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4017332157735 |
| Customs tariff number | 8541500080 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | 0a938584-bc3f-4ca5-a92f-aed2344a0a26 |
| SCIP notification number (Belgium) | 98bb301d-154e-490a-992e-c2ecf03ea911 | SCIP notification number (Bulgaria) | ce6e921f-6b20-4b1e-8ad1-7d1bd4e8bae6 |
| SCIP notification number (Czech Republic) | fa6a524d-58c1-43fd-bdf6-4b26cb46b0ee | SCIP notification number (Denmark) | 82b8c314-06a3-4e05-9ef3-8cd1d941caa2 |
| SCIP notification number (Finland) | e023aa72-65b1-4809-9a0e-b31566b4d683 | SCIP notification number (France) | 10b9dcbc-5a2e-48f1-957b-cc4bf11548b9 |
| SCIP notification number (Germany) | 50e69804-47ed-4f8f-9bcf-8c731491a660 | SCIP notification number (Hungary) | b9a282fb-dd0c-4623-8459-65fde7ac2910 |
| SCIP notification number (Italy) | cdebb324-03b1-443b-9d34-638624684b2e | SCIP notification number (Netherlands) | fb9449cb-2b27-422d-b548-d52c447936b8 |
| SCIP notification number (Poland) | 3253dd11-36fa-4ceb-b09e-8e66674461d6 | SCIP notification number (Romania) | f4e40732-ec6b-47f7-ad85-6bc7c9994c73 |
| SCIP notification number (Sweden) | 4fdbf1f5-0f88-4dd6-9fa7-6b1fe961a1ac | Nominal input voltage U<sub>N</sub> | DC?24?V |
| Input voltage range (high level) | DC?15 … 30?V | Nominal input current at U<sub>N</sub> | 14?mA |
| Input current range | 7.5 … 18?mA | Circuit type | 3-wire connection |
| Limiting continuous current | 5?A | Nominal output voltage | DC?24?V |
| Output voltage range | DC 15 … 40?V | Voltage drop | ≤ 0.5?VDC |
| Leakage current at rated voltage | ≤?2?μA | Turn-on time | ≤?20?μs |
| Turn-off time | ≤?80?μs | Switching frequency | ≤?1?kHz |
| Status indicator | Red LED |
Specifications may be subject to change without notice
