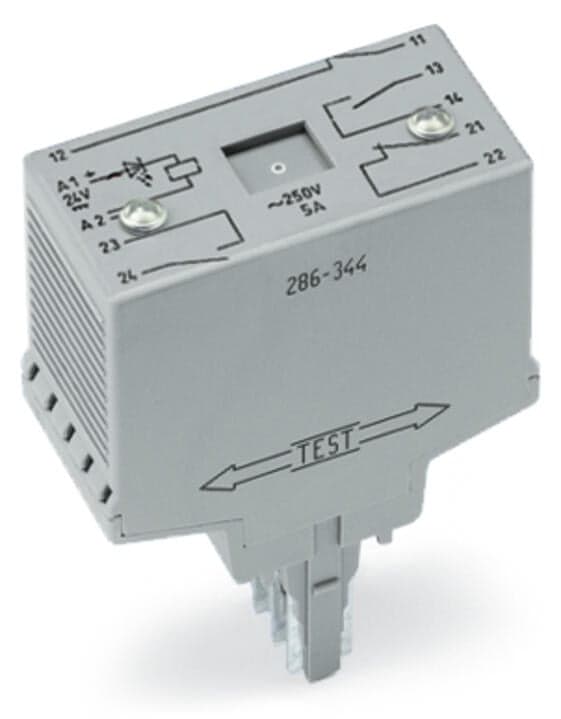

Product Model
286-344/004-000
Key Features
- 1Designed with 4 poles, operating on a control voltage range of 16.8-30Vdc (24Vdc nominal).
- 2Constructed with hard gold-plated silver-nickel (AgNi + Au) contacts for durability.
- 3Includes 3 normally open (3NO) contacts and 1 normally closed (1NC) contact.
- 4Plug-in connections for easy mounting on carrier terminal blocks.
- 5Rated for a maximum switching voltage of AC 250 V and a limiting continuous current of 5 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated voltage | 250V | Rated surge voltage | 4kV |
| Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 1.5?kVrms |
| Protection type | IP20 | Width | 25?mm?/ 0.984?inches |
| Height | 52 mm / 2.047 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
| Note (dimensions) | Depth including carrier terminal block | Mounting type | Pluggable module for receptacle terminal blocks |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 15.112MJ | Weight | 40.4g |
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C | Ambient temperature (storage) | -25 … +70 °C |
| Processing temperature | -25 … +50?°C | Relative humidity | 5 … 85?% (no condensation permissible) |
| Operating altitude (max.) | 2000m | Standards/specifications | EN 60664-1 |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
| ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143104753 |
| Customs tariff number | 8536490050 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | 565565f1-70fd-4b3c-8787-990d5518c6d2 |
| SCIP notification number (Belgium) | d1b64a3e-07b1-4e1f-885f-fa927d9bd9ae | SCIP notification number (Bulgaria) | 5221d313-c67a-491f-8546-960ae55882d9 |
| SCIP notification number (Czech Republic) | d60c4c13-8f74-4c33-9b02-39b6b63d8d37 | SCIP notification number (Denmark) | ebaf2fd8-2e37-40f1-967f-5688ab490a4f |
| SCIP notification number (Finland) | 1b695069-2afa-4802-9d73-84e73faa99bb | SCIP notification number (France) | f831637c-4d0f-455b-b3b8-5b3ecadf6f0a |
| SCIP notification number (Germany) | 5f74c46b-9d07-4ae2-8398-01cf90d6d763 | SCIP notification number (Hungary) | 3d9cb8d1-1d9e-4466-9d79-6162bb263299 |
| SCIP notification number (Italy) | f6796654-c7a0-49bc-b94f-5a2bde779416 | SCIP notification number (Netherlands) | f8409505-b798-451e-aa1e-f3a23fdda84b |
| SCIP notification number (Poland) | 1f9b984a-74ea-4500-9a3f-b6f5ef9edb68 | SCIP notification number (Romania) | a4715ea2-20f3-4060-9e55-82f23b2c2ad6 |
| SCIP notification number (Sweden) | 19684666-78d3-4a65-9b06-7fdb98b2bb89 | Nominal input voltage U<sub>N</sub> | DC?24?V |
| Input voltage range | -30 … +25?% | Nominal input current at U<sub>N</sub> | 9?mA |
| Number of break/switch-off contacts | 1 | Number of make/switch-on contacts | 3 |
| Contact material (relay) | AgNi + Au | Limiting continuous current | 5?A |
| Switching Voltage, Max. | AC?250?V | Pull-in time (typ.) | 9ms |
| Drop-out time (typ.) | 5ms | Bounce time (typ.) | 2ms |
