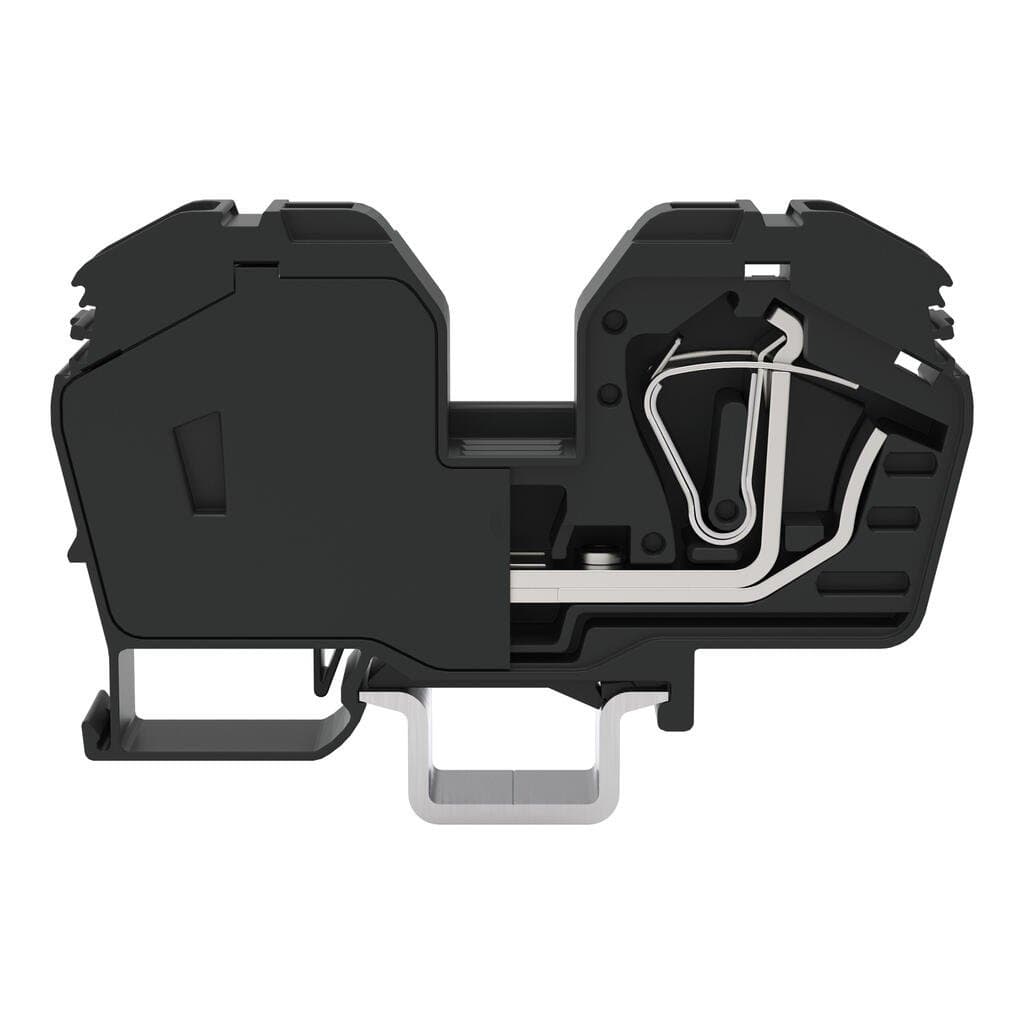

Product Model
285-639
Key Features
- 1Integrated End Plate: Ensures secure and organized wiring.
- 2Side and Center Marking: Facilitates easy identification and connection.
- 3CAGE CLAMP Technology: Provides reliable and easy-to-use connection.
- 4DIN 35 x 15 Rail Compatibility: Designed for seamless integration with DIN rail systems.
- 535 mm² Conductor Capacity: Supports a wide range of electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 16?mm?/ 0.63?inches |
| Height | 100?mm?/ 3.937?inches | Depth from upper-edge of DIN-rail | 53?mm?/ 2.087?inches |
| Mounting type | DIN-35 rail | Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | black | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 1.1MJ | Weight | 88.3g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 15?pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4066966231939 | Customs tariff number | 85369010000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 12kV |
| Rated current | 125A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Rated voltage (III/3) 2 | 1500V | Rated surge voltage (III/3) 2 | 12kV |
| Power loss, per pole (potential) | 4.062W | Rated current I<sub>N</sub> for specified power loss | 125A |
| Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 35 mm2 | Solid conductor | 6 … 35?mm2?/ 10 … 2?AWG |
| Fine-stranded conductor | 6 … 35?mm2?/ 10 … 2?AWG | Strip length | 23?mm?/ 0.91?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
