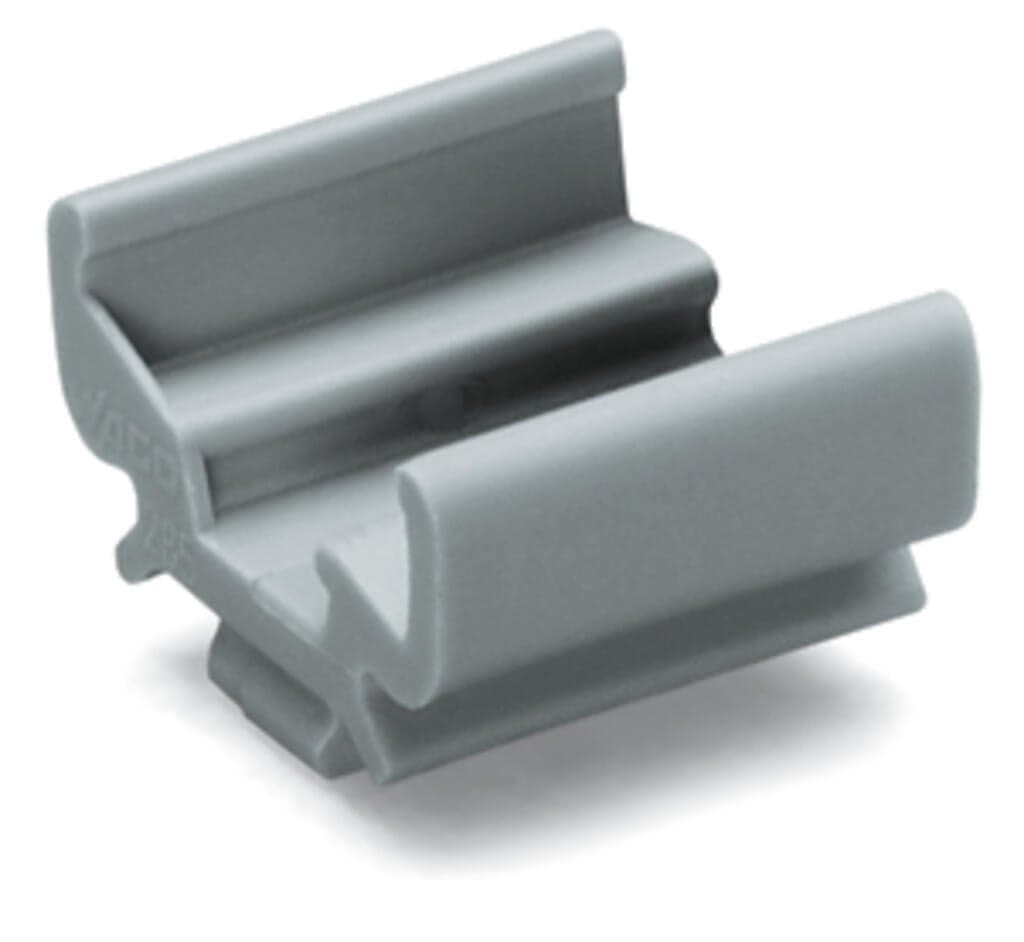

Product Model
285-442
Key Features
- 1Industry-proven spring pressure connection technology ensures secure and reliable connections.
- 2Suitable for 35/50/95 mm² (2, 2/0, 4/0 AWG) wires, including solid and stranded conductors.
- 3Gray housing makes it easy to identify and integrate into your system.
- 4Made from high-quality materials for long-lasting performance.
- 5Simple push-in termination process for quick and efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for POWER CAGE CLAMP Terminal Blocks 35/50/95 mm2 (2, 2/0, 4/0 AWG) | Width | 10.4?mm?/ 0.409?inches |
| Color | gray | Weight | 0.4g |
| Fire load | 0.011MJ | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-40-75 | eCl@ss 9.0 | 27-14-40-75 |
| ETIM 9.0 | EC002248 | ETIM 8.0 | EC002248 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4045454824952 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
