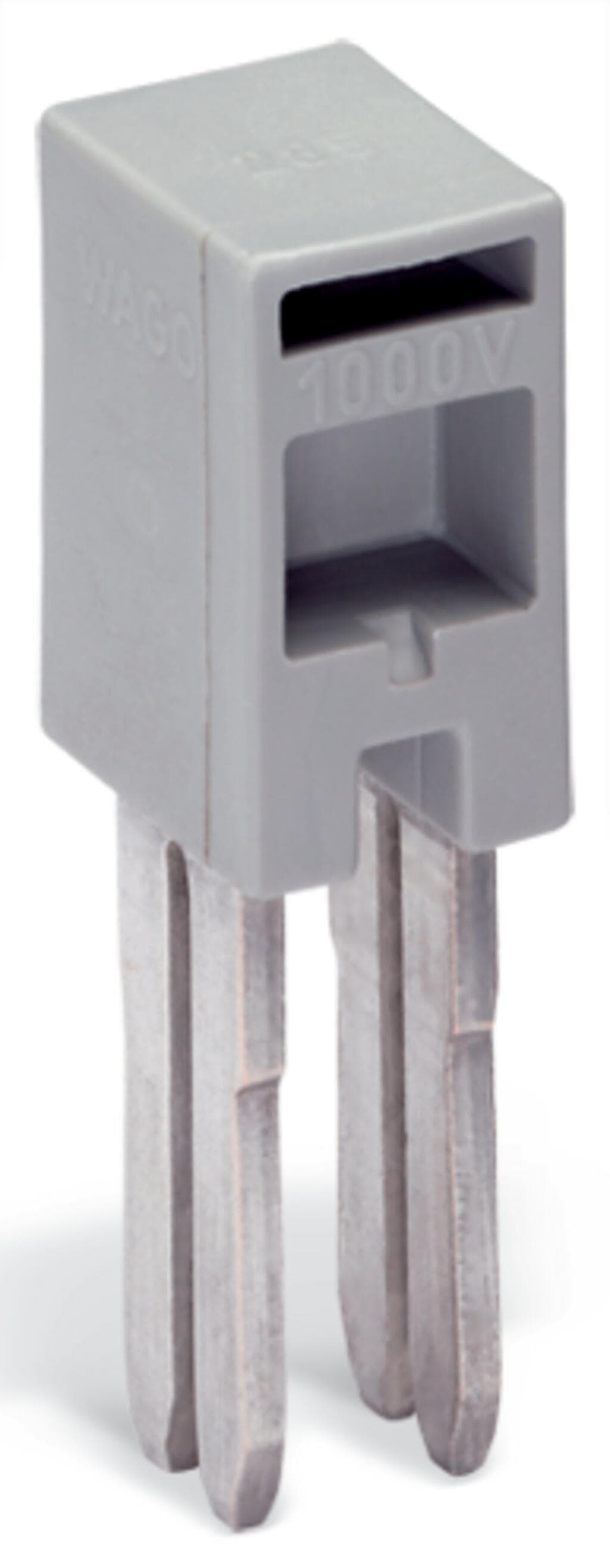

Product Model
285-435
Key Features
- 1High current rating of 85A for efficient electrical connections.
- 2Insulated design ensures safe and reliable operation.
- 3Compact dimensions (16mm x 40.4mm x 13.6mm) for easy integration.
- 4Gray housing color for easy identification in electrical circuits.
- 5Ideal for expanding existing feed-through blocks with additional connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 11.8 mm / 0.464 inches | Height | 13.6?mm?/ 0.535?inches |
| Depth | 39.9 mm / 1.571 inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.076MJ |
| Weight | 7.8g | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918396400 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 85A |
Specifications may be subject to change without notice
