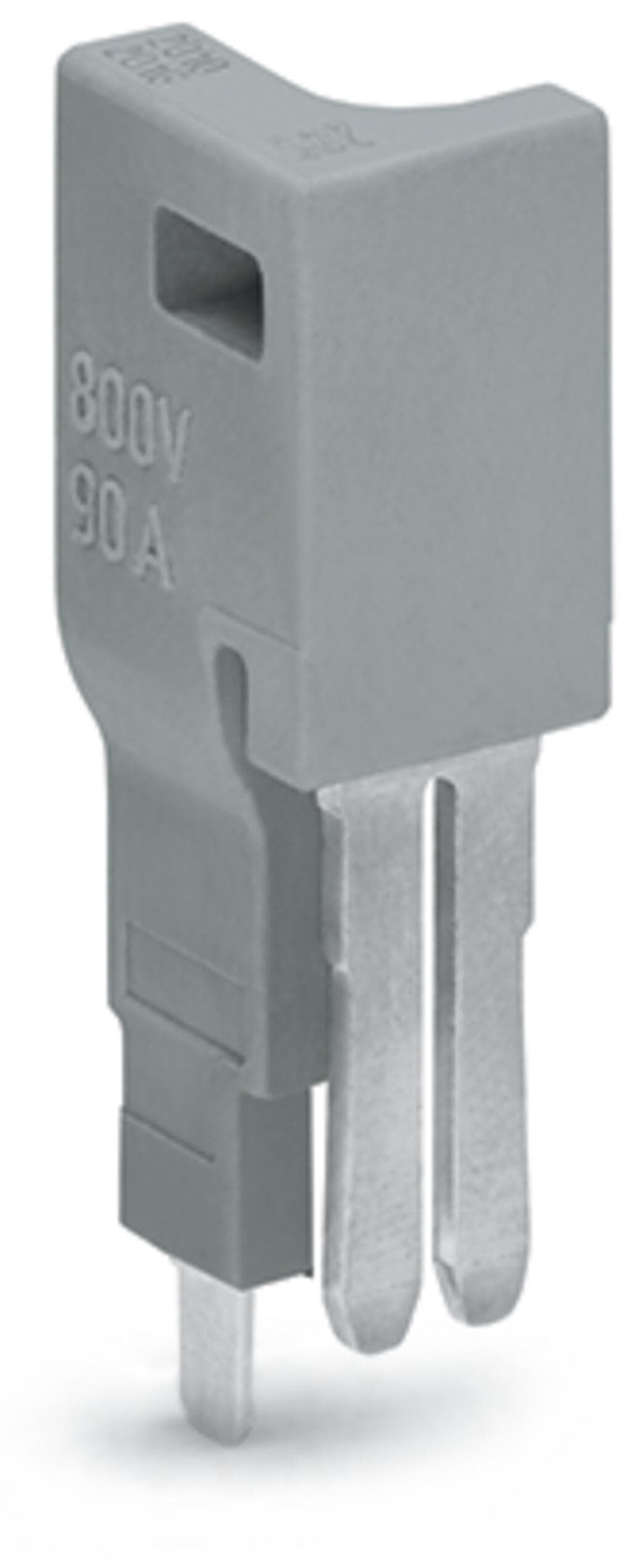

Product Model
285-430
Key Features
- 1Insulated Design: Ensures safe and reliable electrical connections.
- 2High Current Rating: Supports up to 90 A, making it suitable for demanding applications.
- 3Gray Color: Easy to identify and integrate into your electrical setup.
- 4Versatile Compatibility: Compatible with 285-13x to 2010 and 2016 series TOPJOBS terminal blocks.
- 5Durable Material: Made from high-quality polyamide (PA66) for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 17 mm / 0.669 inches | Height | 13.7 mm / 0.539 inches |
| Depth | 49.2 mm / 1.937 inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.083MJ |
| Weight | 12.2g | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454910945 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 800V |
| Rated current | 90A |
Specifications may be subject to change without notice
