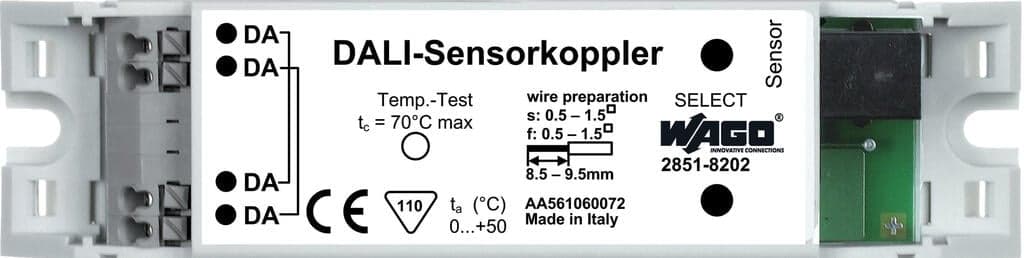

Product Model
2851-8202
Key Features
- 1High-quality connectivity solution for reliable and efficient operations.
- 2Designed for secure and stable connections in various applications.
- 3Compatible with other WAGO products for seamless integration.
- 4Ensures safe isolation of wiring and function levels.
- 5Low current consumption (typ. 5 mA from DALI line).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Current consumption, typ. | 5 mA from DALI line | Supply voltage | via DALI line |
| Strip length | 85?mm?/ 3.35?inches | Width | 30?mm?/ 1.181?inches |
| Height | 21?mm?/ 0.827?inches | Depth | 118?mm?/ 4.646?inches |
| Weight | 5g | Ambient temperature (operation) | 0 … +50 °C |
| Ambient temperature (storage) | -25 … +70 °C | Protection type | IP20 |
| Product Group | 31 (building automation components) | ETIM 9.0 | EC001582 |
| ETIM 8.0 | EC001582 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?(1)?pcs | Packaging type | box |
| Country of origin | IT | GTIN | 4050821708407 |
| Customs tariff number | 8537109170 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
