Product Model
285-169
Key Features

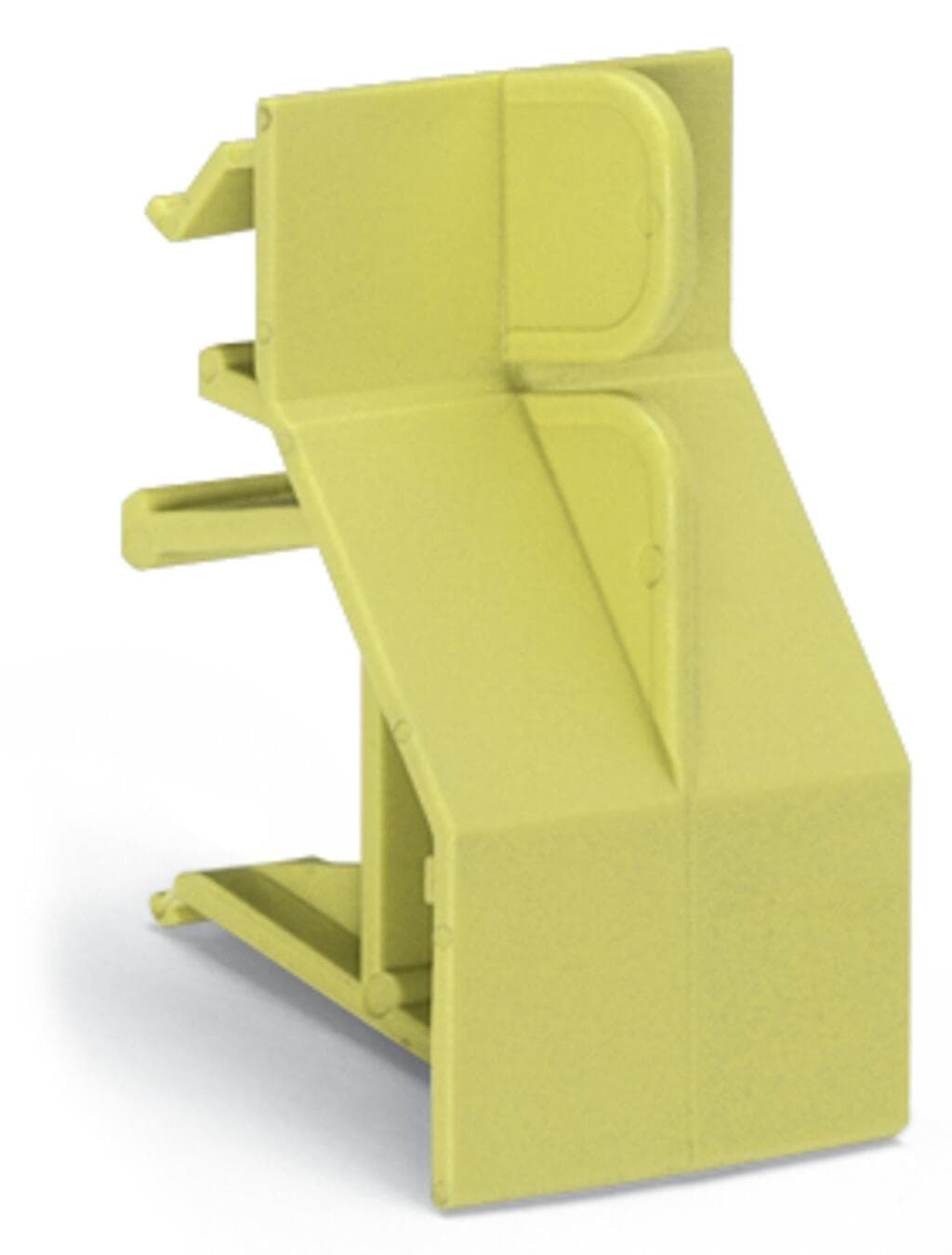

- 1Touchproof cover protects unused conductor entries and jumper slots.
- 2Designed for 95 mm² high-current terminal blocks.
- 3Yellow color for easy identification.
- 4Continuous operating temperature range: -60°C to +105°C.
- 5Ideal for DIN rail mounting applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note (material data) | Information on material specifications can be found here | Color | yellow |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.08MJ |
| Weight | 2.7g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332028691 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
