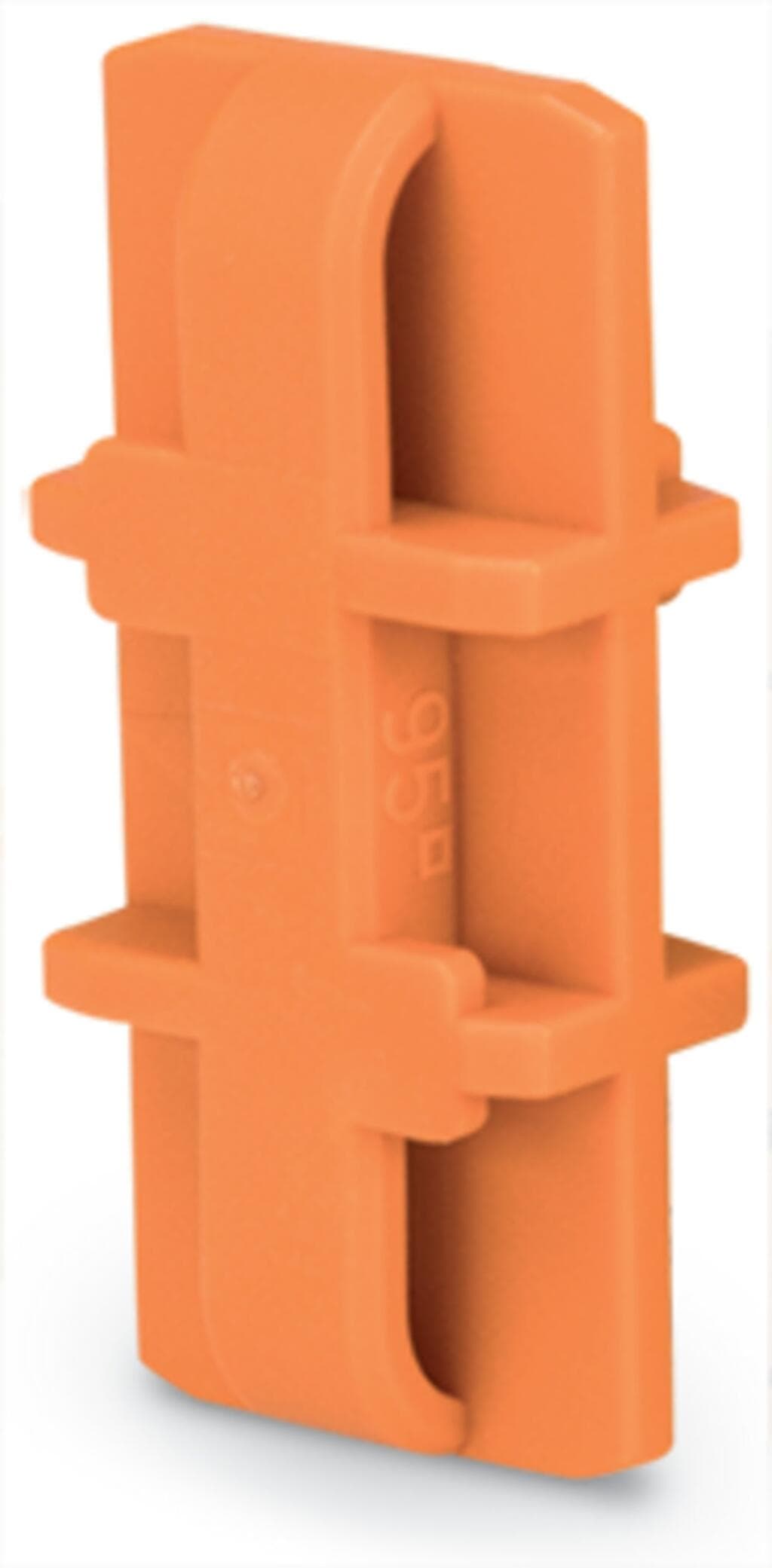

Product Model
285-168
Key Features
- 1Designed for 95 mm² high-current terminal blocks.
- 2Available in orange color for easy identification.
- 3Ideal for electrical applications requiring high current.
- 4Packaged in multiples of 25 for convenience.
- 5Compatible with WAGO's 285 series electrical components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Weight | 1.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4055143578172 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
