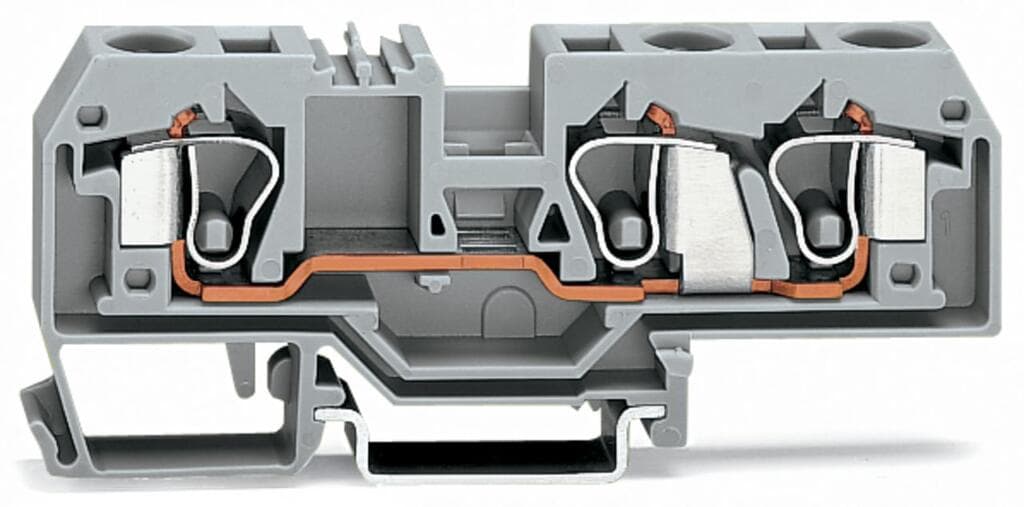

Product Model
284-682
Key Features
- 1Built with high-quality polyamide (PA66) for insulation and robust performance.
- 2Front-entry wiring design simplifies installation and reduces clutter.
- 3Compatible with DIN rail 35 x 15 and 35 x 7.5, ensuring flexibility in industrial setups.
- 4Supports a rated current of 57A, suitable for demanding applications.
- 5Utilizes CAGE CLAMP spring connections for secure and easy wire clamping.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 3 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
| Height | 97.5?mm?/ 3.839?inches | Depth from upper-edge of DIN-rail | 35?mm?/ 1.378?inches |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.443MJ |
| Weight | 31.9g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918447454 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 57A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 1.819W | Rated current I<sub>N</sub> for specified power loss | 57A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
