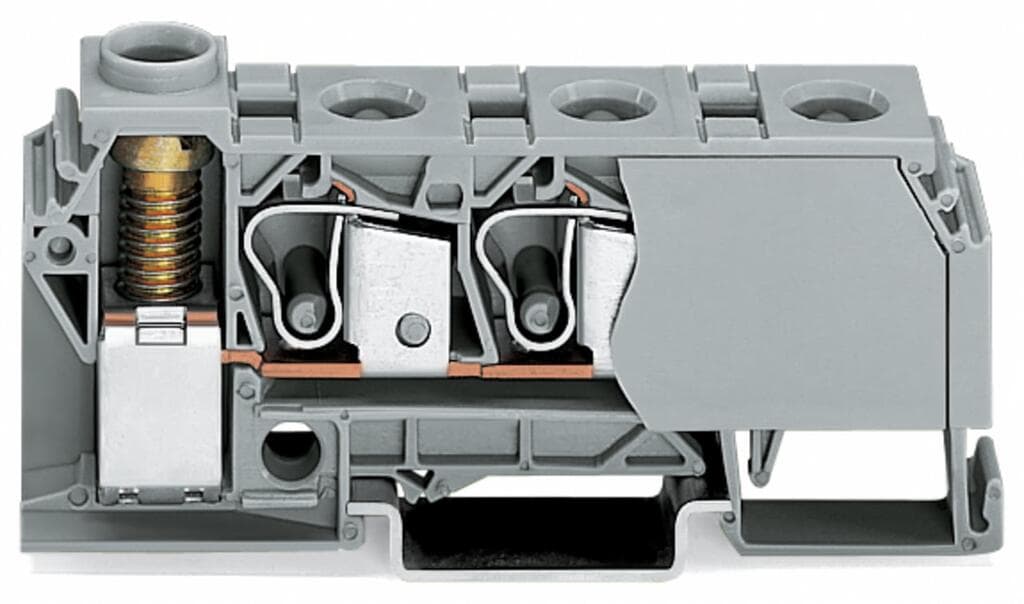

Product Model
284-624
Key Features
- 1Supports up to 125A, ideal for demanding applications.
- 2Includes 3 x CAGE CLAMP connections and 1 x screw-clamp connection.
- 3Made from high-quality polyamide (PA66) for long-lasting performance.
- 4Mounts seamlessly onto 35 mm DIN rails, ensuring quick and secure setup.
- 5Meets overvoltage category III and pollution degree 3 standards for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 17.5?mm?/ 0.689?inches |
| Height | 89?mm?/ 3.504?inches | Depth from upper-edge of DIN-rail | 39.5?mm?/ 1.555?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Side marking | Torque | 3.5Nm |
| Note (material data) | Information on material specifications can be found here | Color | blue |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.625MJ |
| Weight | 55.6g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 15?pcs | Packaging type | box |
| Country of origin | IN | GTIN | 4045454282578 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 125A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 8.75W | Rated current I<sub>N</sub> for specified power loss | 125A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
| Total number of connection points | 3 | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Strip length | 12 … 14?mm?/ 0.47 … 0.55?inches |
| Wiring direction | Front-/side-entry wiring | Connection technology 2 | Screw connection |
| Number of connection points 2 | 1 | Solid conductor 2 | 6 … 35?mm2?/ 10 … 2?AWG |
| Fine-stranded conductor 2 | 6 … 35?mm2?/ 10 … 2?AWG |
Specifications may be subject to change without notice
