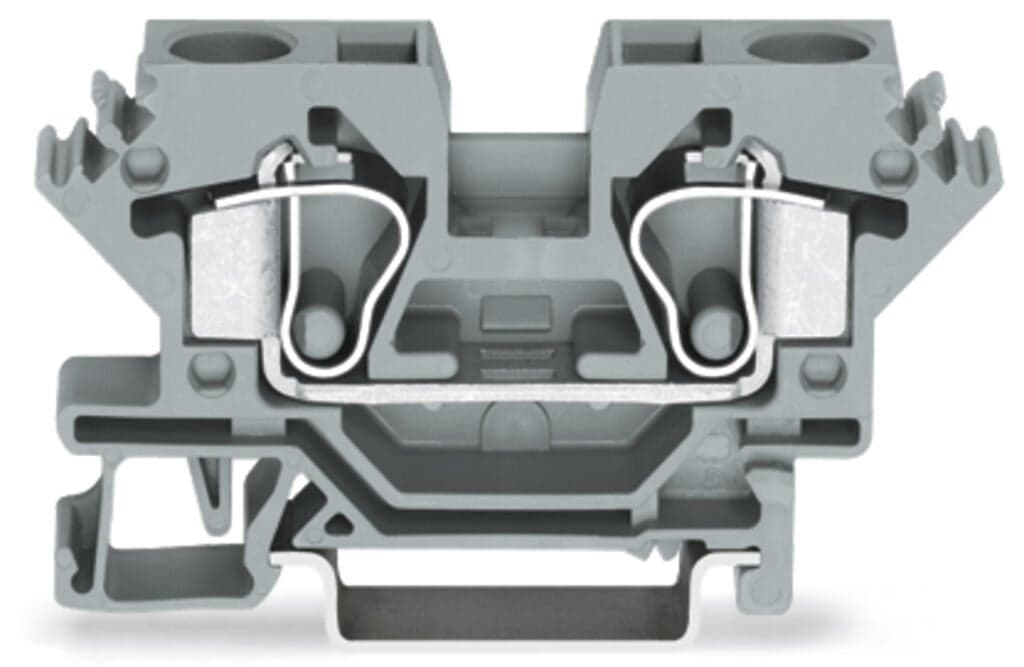

Product Model
284-601
Key Features
- 1Made with polyamide 66 (PA 66) for long-lasting performance.
- 2Utilizes CAGE CLAMP technology for secure and easy wire connections.
- 3Suitable for DIN rail 35 x 15 and 35 x 7.5 mounting, saving space in industrial settings.
- 4Rated for up to 50A, making it suitable for demanding applications.
- 5Facilitates easy wiring from the front, reducing installation time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
| Height | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 33.5?mm?/ 1.319?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.253MJ | Weight | 18.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918486361 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
| Rated impulse voltage (III / 3) | 8kV | Rated current | 57A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.819W |
| Rated current I<sub>N</sub> for specified power loss | 57A | Resistance value for specified, current-dependent power loss | 0.001Ω |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
