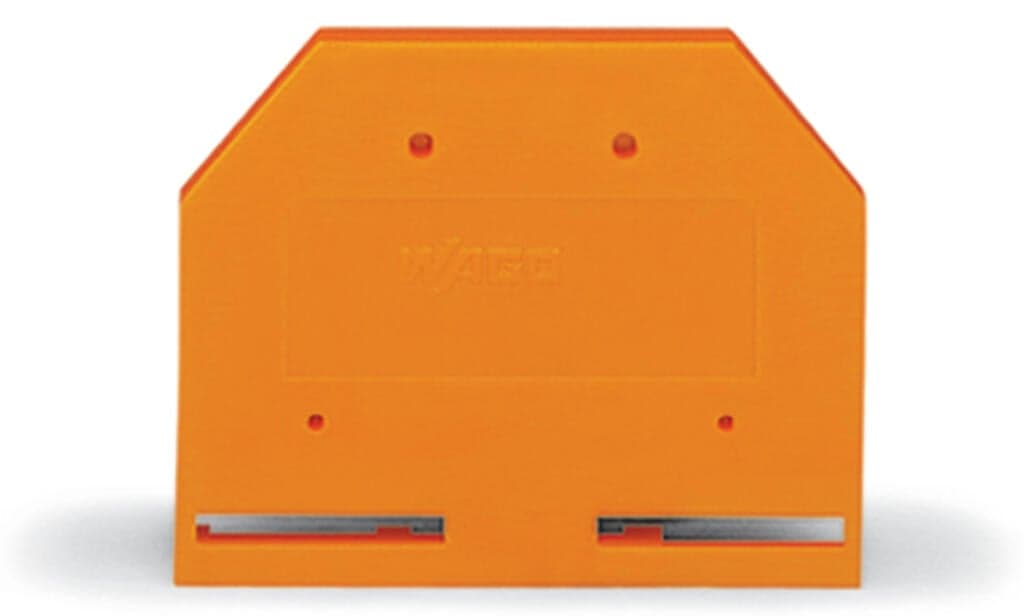

Product Model
283-302
Key Features
- 1Durable construction with a 4 mm thickness.
- 2Orange color for easy identification.
- 3Fire-resistant with a flammability class of V0.
- 4Compatible with DIN rail terminal blocks.
- 5Available in quantities of 25 units or more.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 4?mm?/ 0.157?inches | Height | 58?mm?/ 2.283?inches |
| Depth | 44?mm?/ 1.732?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.163MJ | Weight | 5.4g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332286381 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
