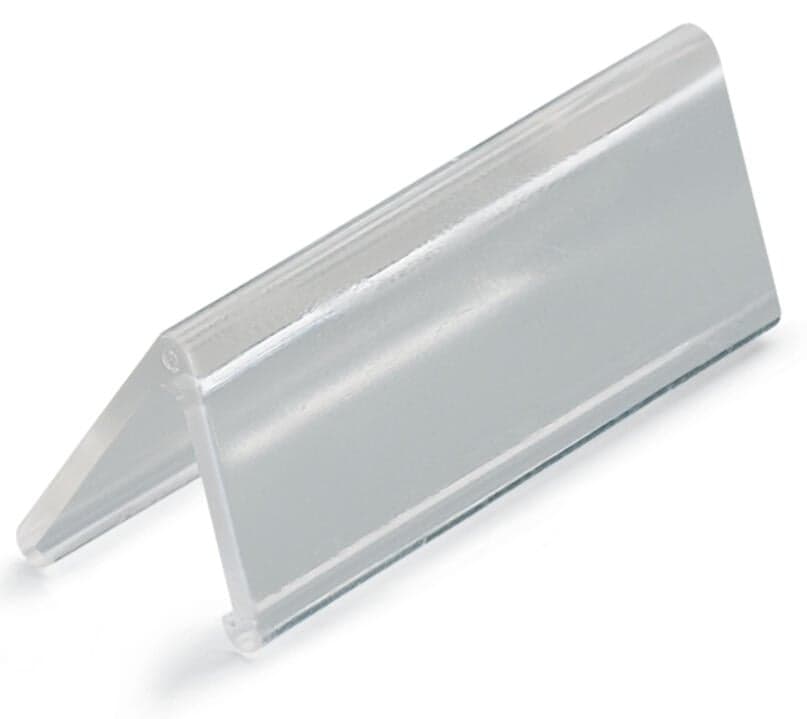

Product Model
282-887
Key Features
- 1Mechanically locks multiple links for enhanced security.
- 2Transparent design for easy visibility and inspection.
- 3High fire load resistance of 0.122 MJ.
- 4Lightweight at 4.62g, easy to handle and install.
- 5Compatible with rail-mounted terminal blocks (Product Group 1).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 55.2 mm / 2.173 inches | Note (material data) | Information on material specifications can be found here |
| Color | transparent | Material group | IIIa |
| Insulation material (main housing) | Polycarbonate (PC) | Flammability class per UL94 | V2 |
| Fire load | 0.116MJ | Weight | 3.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(10)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454636296 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
