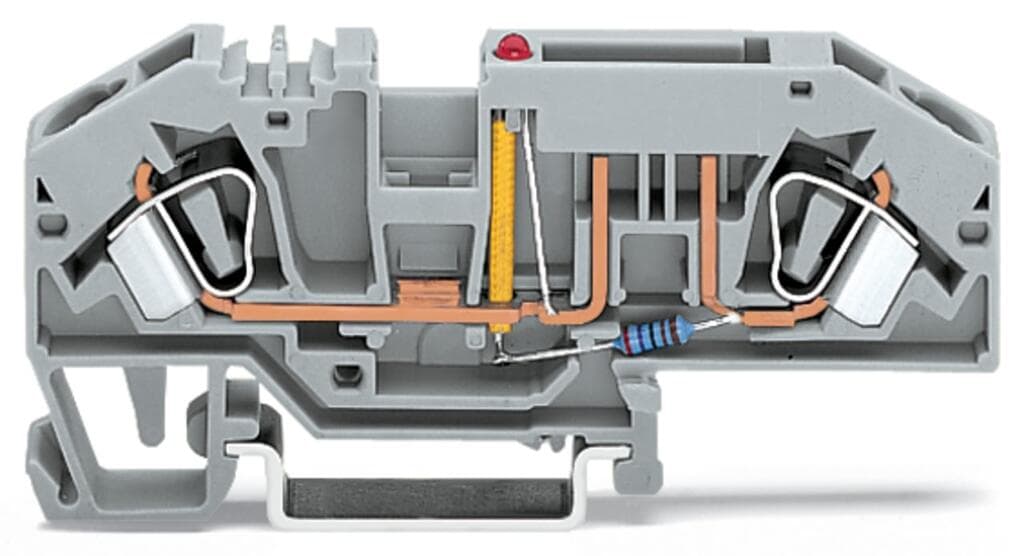

Product Model
282-698/281-429
Key Features
- 1DIN Rail Mounting: Designed for easy installation on DIN rails.
- 2LED Blown-Fuse Indication: Provides clear visual indication of blown fuses.
- 3Automotive Blade-Style Fuses: Compatible with automotive blade-style fuses.
- 4CAGE CLAMP Termination: Secure and easy-to-use wire termination system.
- 512V Circuit Compatibility: Ideal for use in 12V electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 2 |
| Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
| Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 33.5?mm?/ 1.319?inches |
| Design | angled | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.3MJ | Weight | 17.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-16 |
| eCl@ss 9.0 | 27-14-11-16 | ETIM 9.0 | EC000899 |
| ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4050821234579 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I | Ratings per | IEC/EN 60947-7-3 |
| Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 25A | Current at conductor cross-section (max.) mm2 | 30A |
| Operation status indicator | 12?V | Blown fuse indication | with blown fuse indication by LED |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
| Rated current (note) | LED power consumption: 4.8 mA | Ratings (note) 2 | Blade-style fuses: Observe touch-proof protection for 42?V and higher voltages! |
| Fuse receptacle | pluggable | Fuse type | Standard flat plug-in fuse; 19.1 x 5.1 x 18.5 mm |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
| Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
