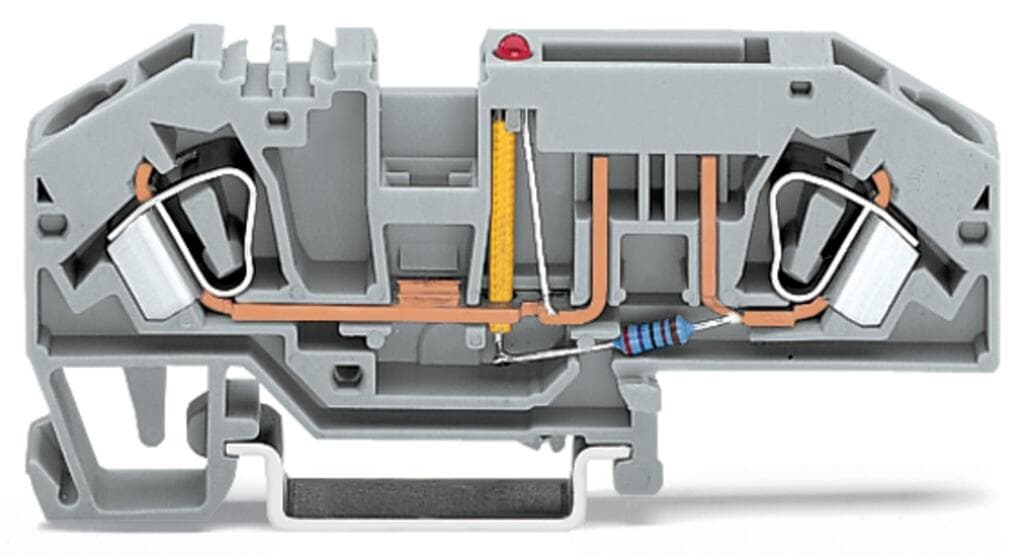

Product Model
282-698/281-413
Key Features
- 1High-Quality Construction: Made with durable polyamide (PA66) insulation and a robust CAGE CLAMP connection technology.
- 2LED Blown Fuse Indication: Features a 24V LED indicator for easy detection of blown fuses.
- 3DIN-Rail Mounting: Designed for easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 4Versatile Wire Size: Compatible with wire sizes from 24 AWG to 10 AWG.
- 5RoHS Compliant: Meets RoHS standards, ensuring environmental safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 2 |
| Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
| Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 33.5?mm?/ 1.319?inches |
| Design | angled | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.299MJ | Weight | 17.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-16 |
| eCl@ss 9.0 | 27-14-11-16 | ETIM 9.0 | EC000899 |
| ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4050821234555 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-3 | Rated voltage (III / 3) | 400V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 25A |
| Current at conductor cross-section (max.) mm2 | 30A | Operation status indicator | 24 V |
| Blown fuse indication | with blown fuse indication by LED | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. | Rated current (note) | LED power consumption: 4.8 mA |
| Ratings (note) 2 | Blade-style fuses: Observe touch-proof protection for 42?V and higher voltages! | Fuse receptacle | pluggable |
| Fuse type | Standard flat plug-in fuse; 19.1 x 5.1 x 18.5 mm | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
| Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
