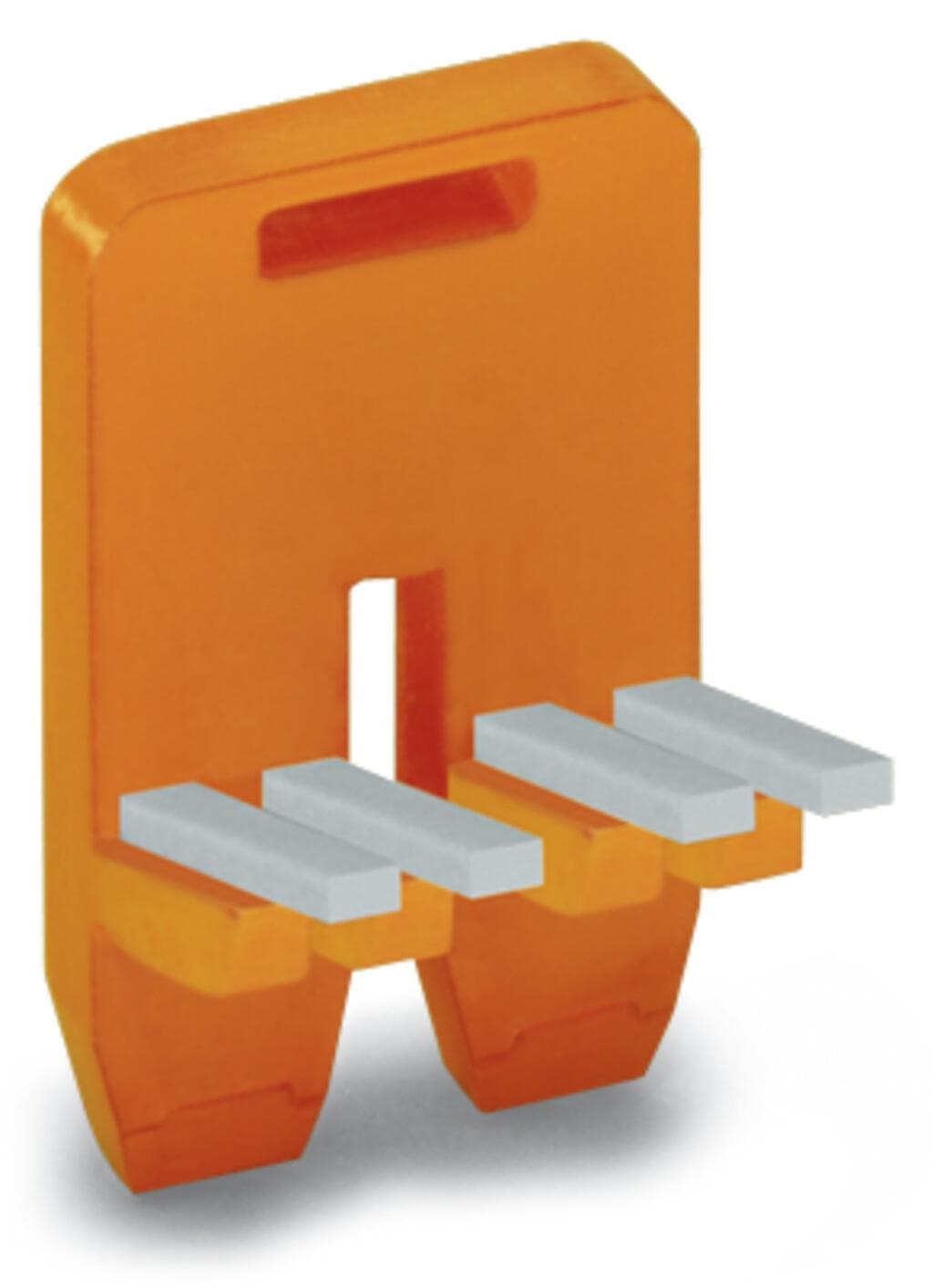

Product Model
282-444
Key Features
- 1Insulated push-in type adjacent jumper for secure connections.
- 24-way configuration for versatile terminal block applications.
- 3Designed for 2-conductor transverse switching terminal blocks.
- 4Handles high currents up to 30A for reliable performance.
- 5Available in orange color for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Jumper assignment | 1-2-3-4 | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.038MJ | Weight | 5.1g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454888541 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 30A |
Specifications may be subject to change without notice
