Product Model
282-415
Key Features

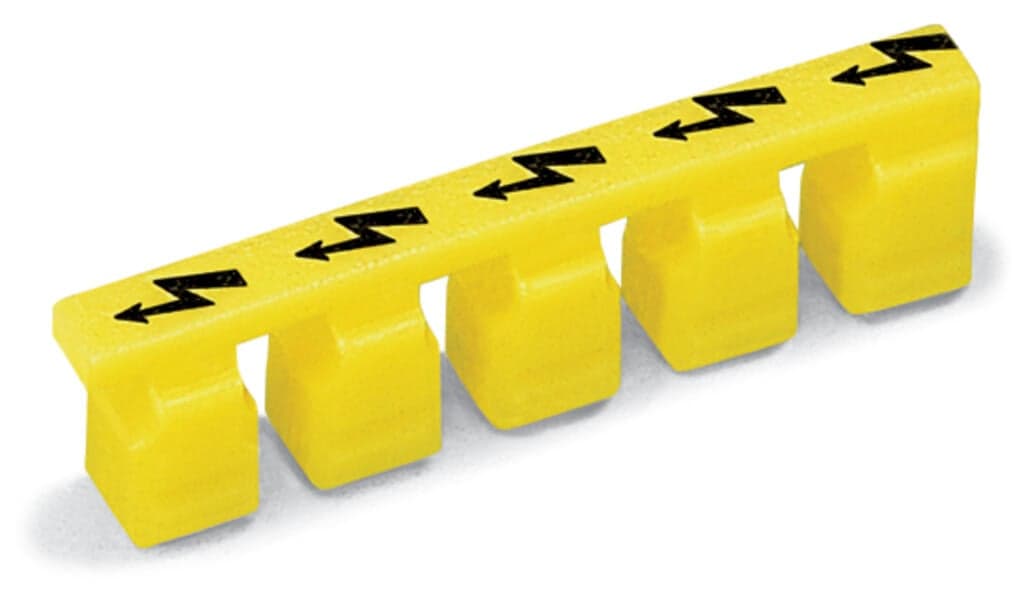

- 1High-Voltage Symbol: Features a clear black high-voltage symbol for immediate warning.
- 2Yellow Color: Bright yellow color for easy visibility in electrical environments.
- 3Material Compliance: Made from polyamide (PA66) with V0 flammability rating and RoHS compliance.
- 4Temperature Range: Operates continuously from -60°C to +105°C and processes up to +85°C.
- 5Packaging and Availability: Available in boxes of 25 units, ensuring bulk purchasing convenience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note (material data) | Information on material specifications can be found here | Color | yellow |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.023MJ |
| Weight | 0.8g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332286213 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
