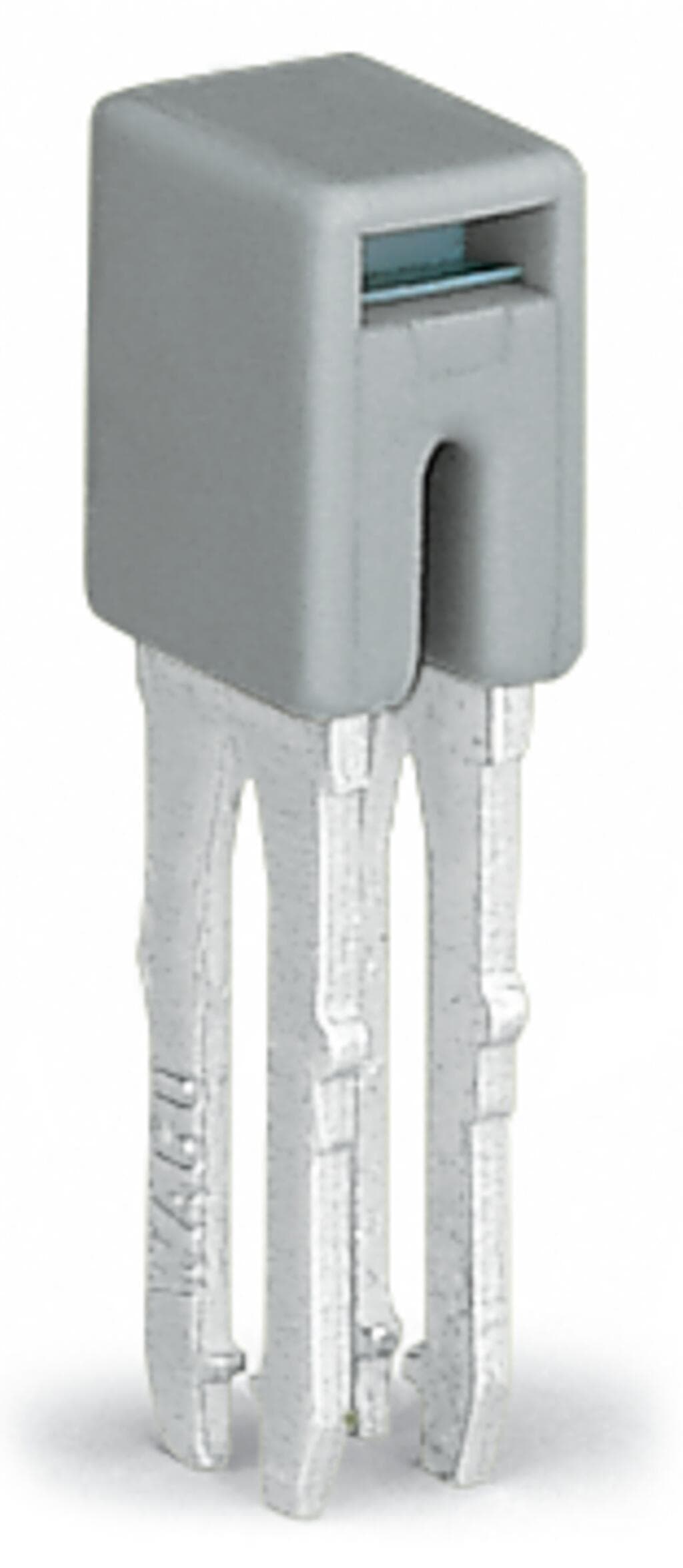

Product Model
282-402
Key Features
- 1High current rating of 41A for reliable connections.
- 2Insulated design for enhanced safety and durability.
- 3Grey color for easy identification in industrial settings.
- 4Compact dimensions (0.315 in W x 0.315 in D) for space-efficient use.
- 5Compatible with 282 Series Terminal Blocks for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 8?mm?/ 0.315?inches | Height | 8?mm?/ 0.315?inches |
| Depth | 24.6 mm / 0.969 inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.015MJ |
| Weight | 2.8g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821343806 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated current | 41A | Rated current (Ex e II) | 35A |
Specifications may be subject to change without notice
