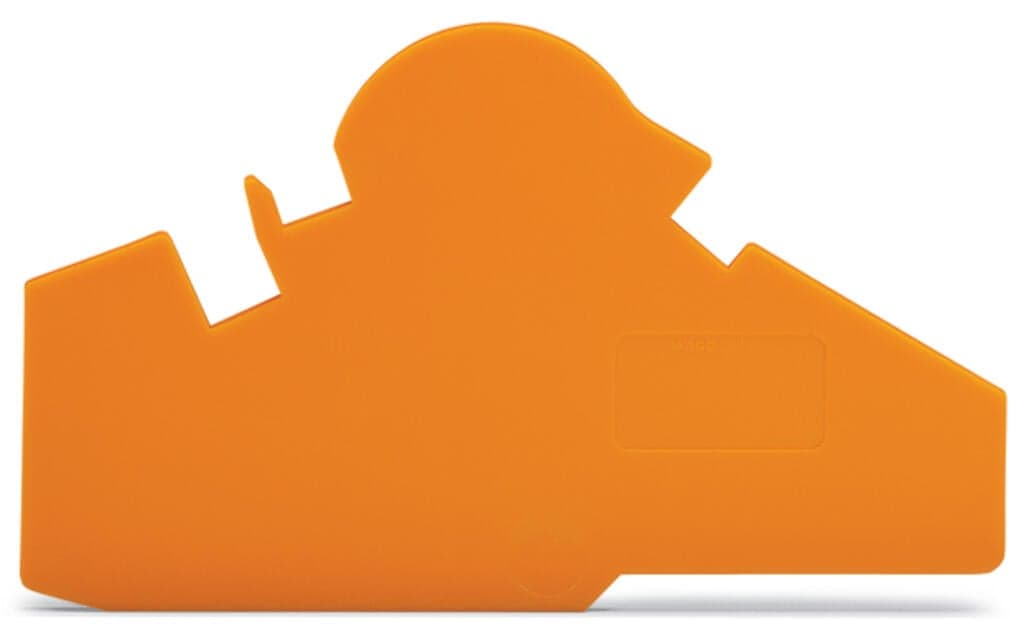

Product Model
282-386
Key Features
- 1Durable Construction: 1.5 mm thick for robust electrical connections.
- 2Compact Design: Measures 122 mm x 71.7 mm x 1.5 mm for space-efficient installation.
- 3Orange Color: Easy identification in electrical systems.
- 4Material Compliance: Compliant with RoHS regulations, ensuring environmental safety.
- 5Versatile Use: Suitable for various rail-mounted terminal block applications without a lock-out seal option.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.5?mm?/ 0.059?inches | Height | 122?mm?/ 4.803?inches |
| Depth | 71.7?mm?/ 2.823?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.284MJ | Weight | 9.4g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(10)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332264921 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
