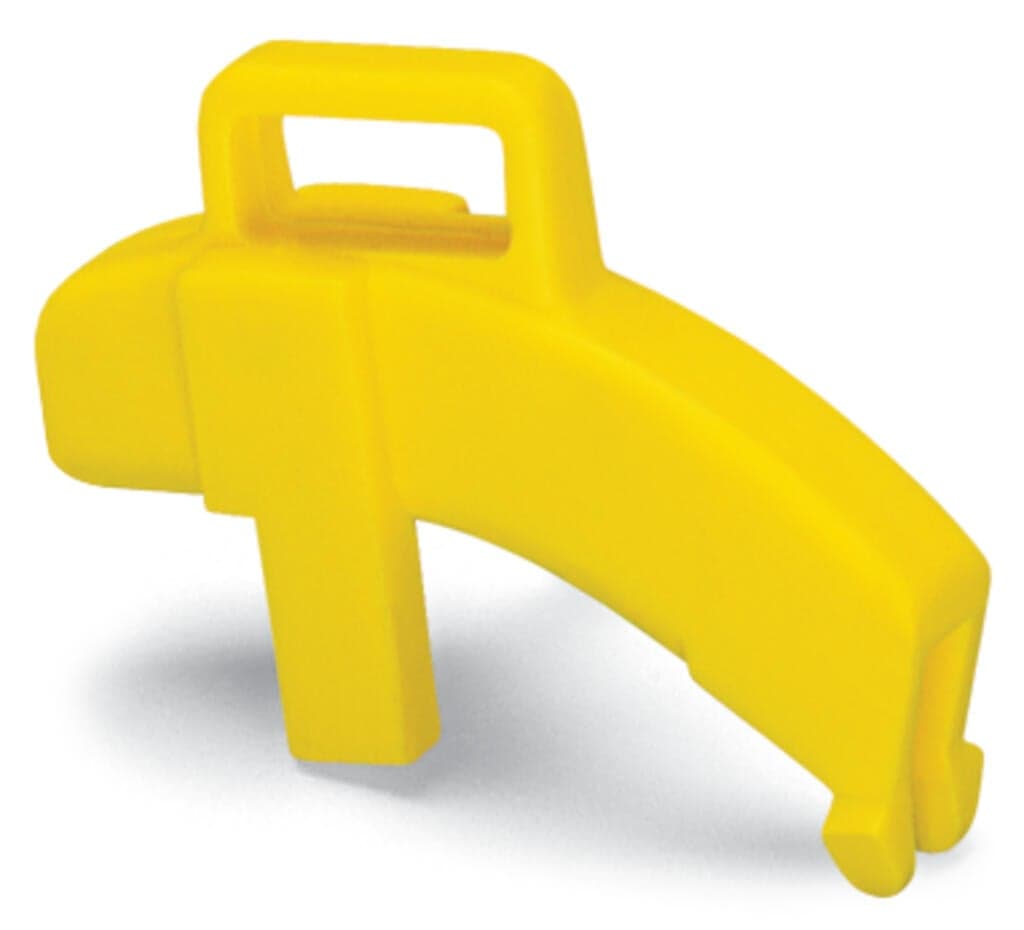

Product Model
282-384
Key Features
- 1Ideal for lock-out and disconnect link applications.
- 2Yellow color for easy identification.
- 3Lightweight design with a weight of 0.400 g.
- 4Durable construction for reliable performance.
- 5Compatible with DIN rail terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note (material data) | Information on material specifications can be found here | Color | yellow |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.013MJ |
| Weight | 0.4g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(20)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332283212 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
