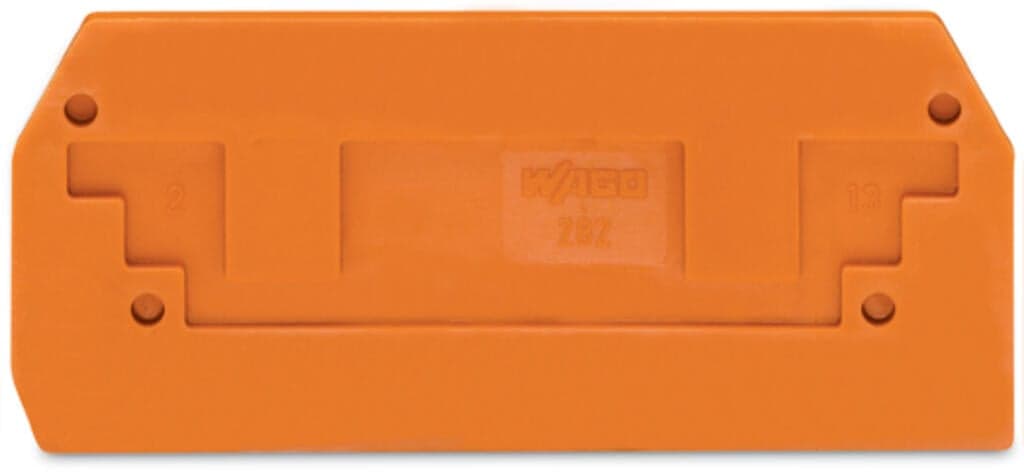

Product Model
282-328
Key Features
- 1High-Quality Rail Mounting Solution: Designed for precise rail mounting.
- 2Durable Construction: 2.5 mm thickness for robust performance.
- 3Fire-Resistant: Meets 0.117 MJ fire load specifications.
- 4Compact Dimensions: 2.917 in H x 0.098 in W x 1.28 in D.
- 5Orange Color: Easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2.5?mm?/ 0.098?inches | Height | 74.1?mm?/ 2.917?inches |
| Depth | 32.5?mm?/ 1.28?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.117MJ | Weight | 3.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332291545 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
