Product Model

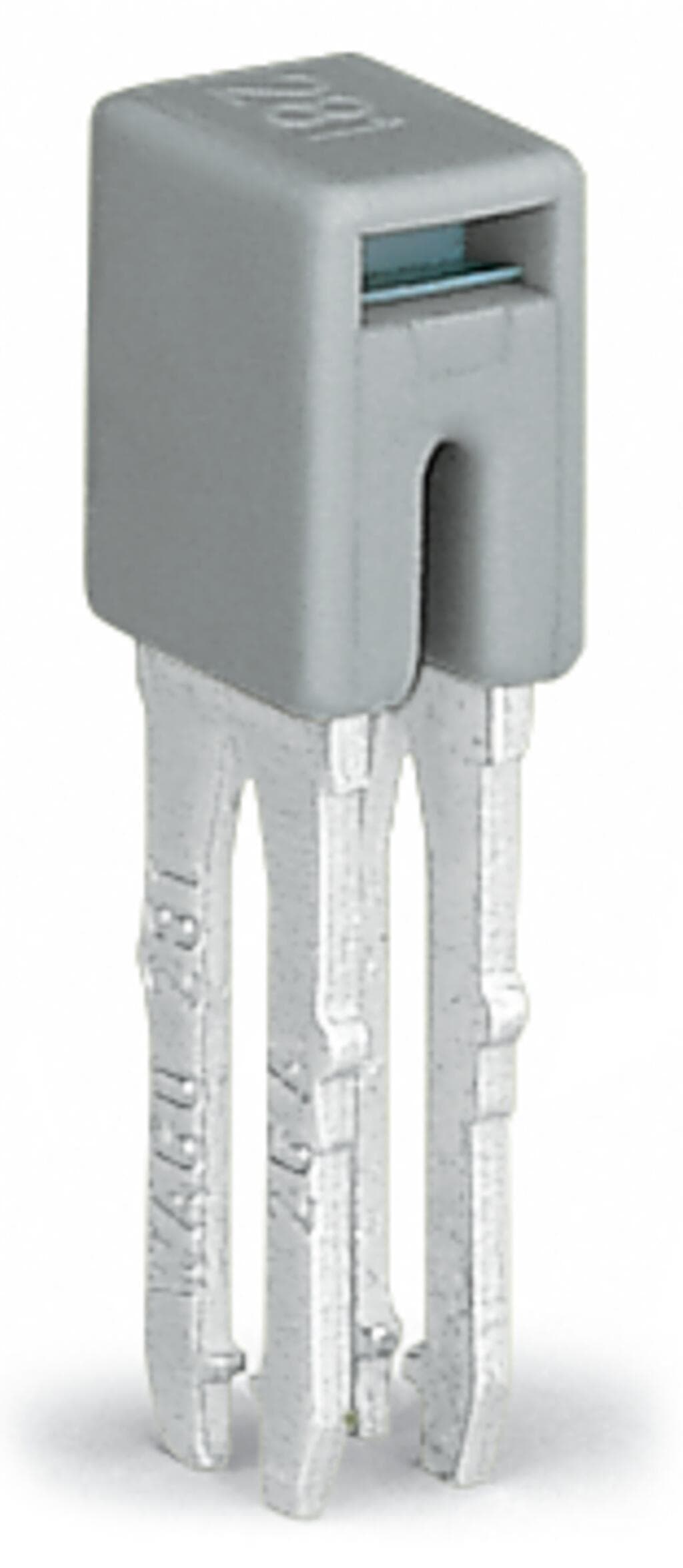

281-402
Key Features
- 1High Current Rating: 26 to 32 A current rating for reliable connections.
- 2Insulated Design: Ensures safe and secure electrical connections.
- 3Gray Color: Easy identification in complex wiring systems.
- 4Fire Load Compliance: Meets 0.032 MJ fire load standards for safety.
- 5Versatile Use: Suitable for use with terminal blocks in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 6?mm?/ 0.236?inches | Height | 8?mm?/ 0.315?inches |
| Depth | 23.7 mm / 0.933 inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.01MJ |
| Weight | 1.7g | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918253550 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 32A |
| Rated current (Ex e II) | 26A |
Specifications may be subject to change without notice
