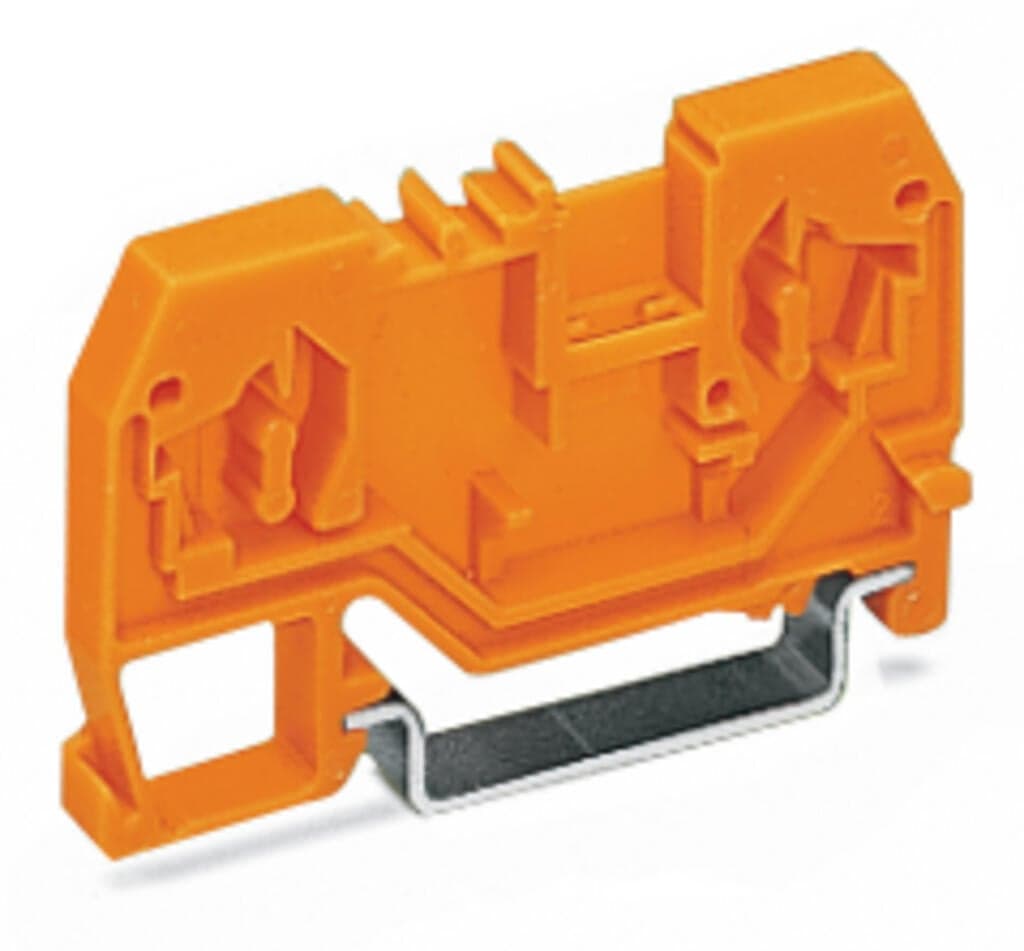

Product Model
280-902/056-000
Key Features
- 1Precision Design: Designed for 2-conductor terminal blocks of horizontal type.
- 2Durable Material: Made from high-quality polyamide (PA66) for insulation.
- 3Easy Mounting: Mounts securely on DIN-35 rail.
- 4Compact Size: Width: 5 mm, Height: 53 mm, Depth: 28 mm from upper edge of DIN-rail.
- 5Reliable Performance: Center marking for precise placement and orange color for visibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Spacers can bebridgedvia alternate jumpers or staggered jumpers. | Width | 5?mm?/ 0.197?inches |
| Height | 53?mm?/ 2.087?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.112MJ | Weight | 3.7g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332301497 |
| Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
