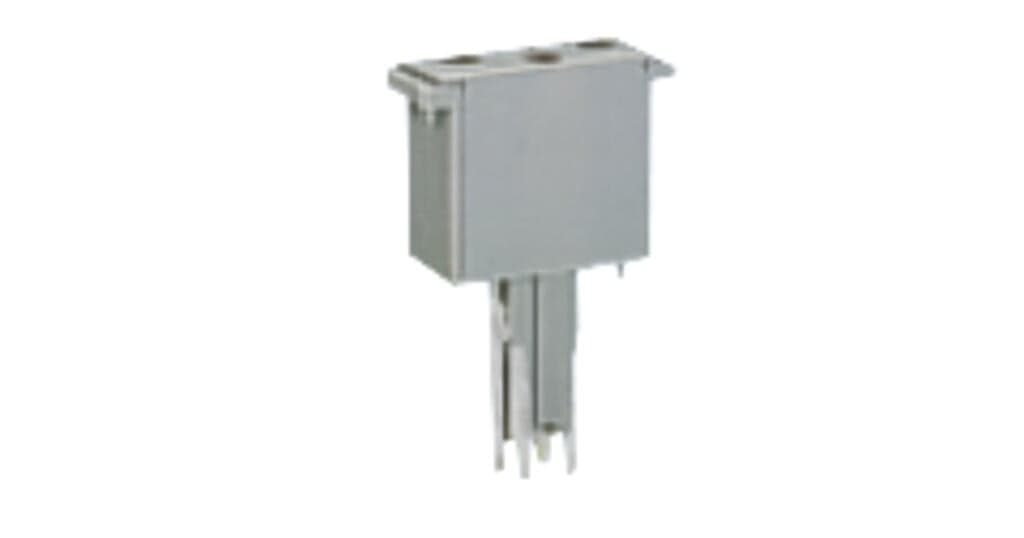

Product Model
280-804
Key Features
- 1Efficient Power Supply: WAGO's efficient power supplies deliver a constant supply voltage for various applications.
- 2High Current Rating: Rated continuous current of 6 A ensures reliable performance in electrical systems.
- 3Durable Construction: Made from high-quality materials, including polyamide (PA66) for insulation, ensuring long-lasting durability.
- 4Easy Installation: Pluggable module design makes it simple to integrate into carrier terminal blocks.
- 5Versatile Use: Suitable for a wide range of electrical and automation applications, including DIN-rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Plug inside dimensions: W/H/L (8.2/15/15) mm | Rated continuous current | 6A |
| Rated voltage | 250V | Rated surge voltage | 4kV |
| Pollution degree | 3 | Number of poles | 4 |
| Wiring direction | Front-entry wiring | Width | 10?mm?/ 0.394?inches |
| Housing design | Plug for carrier terminal blocks | Mounting type | Pluggable module for carrier terminal block |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Material group | I | Flammability class per UL94 | V0 |
| Fire load | 0.134MJ | Weight | 4g |
| Processing temperature | -35 … +85?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-18-27-02 |
| ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918270434 | Customs tariff number | 8547200000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
