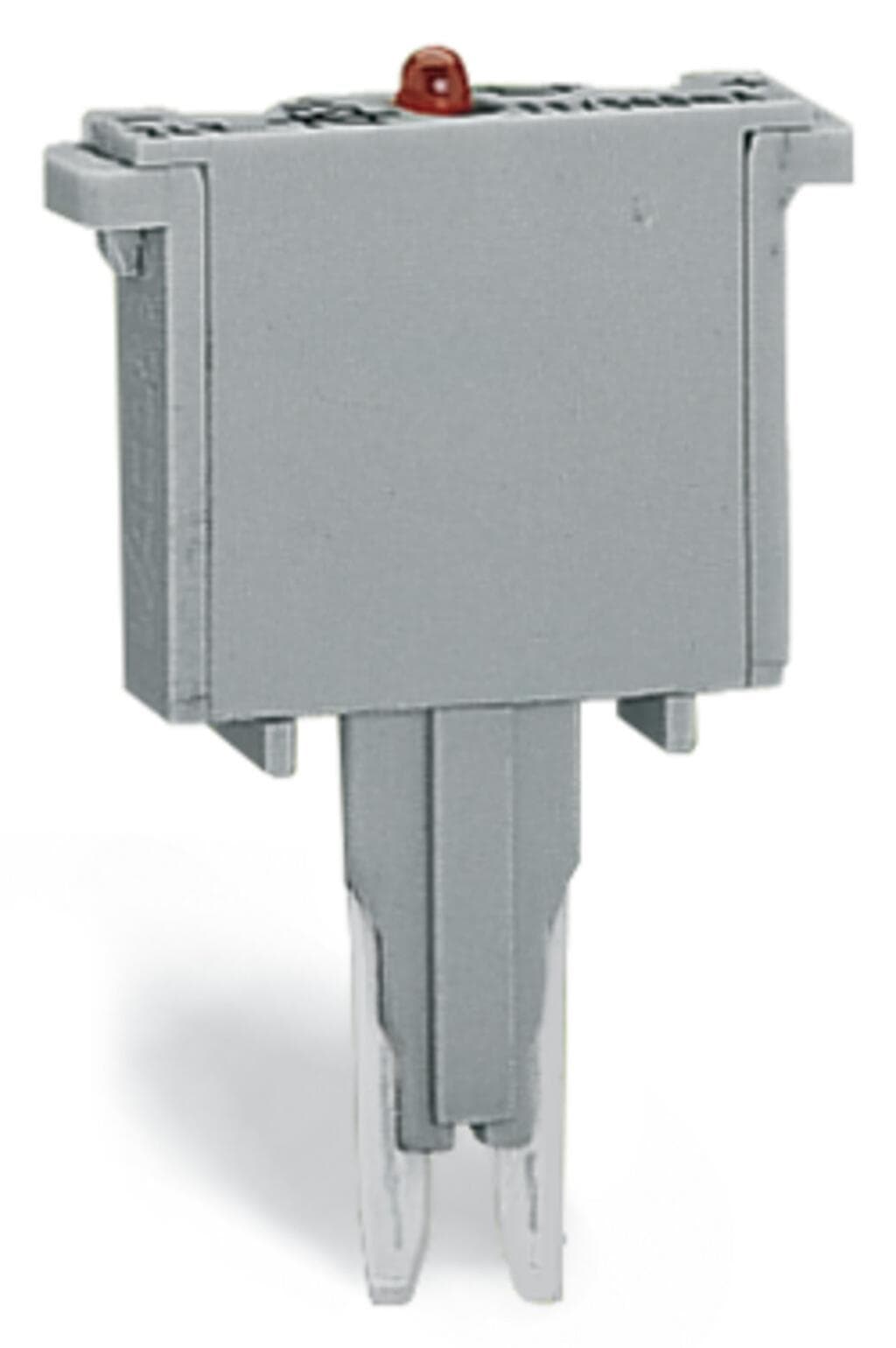

Product Model
280-801/281-413
Key Features
- 1High-quality 3D CAD models available for free download.
- 2Compatible with carrier terminal blocks, ensuring seamless integration.
- 32-pole design with red LED indicator for easy visibility.
- 4Operates at 24 VDC, suitable for various industrial applications.
- 55 mm wide, compact design for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Voltage type 1 | DC | Width | 5?mm?/ 0.197?inches |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.101MJ |
| Weight | 2.6g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821864851 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Operation status indicator | 24?VDC |
Specifications may be subject to change without notice
