Product Model
280-762
Key Features
- 1Rated for 400V to ensure reliable operation in demanding electrical environments.
- 2Supports wire sizes from 0.08mm² to 2.5mm² or #28AWG to #14AWG.
- 3Utilizes CAGE CLAMP spring connections for quick and secure wiring.

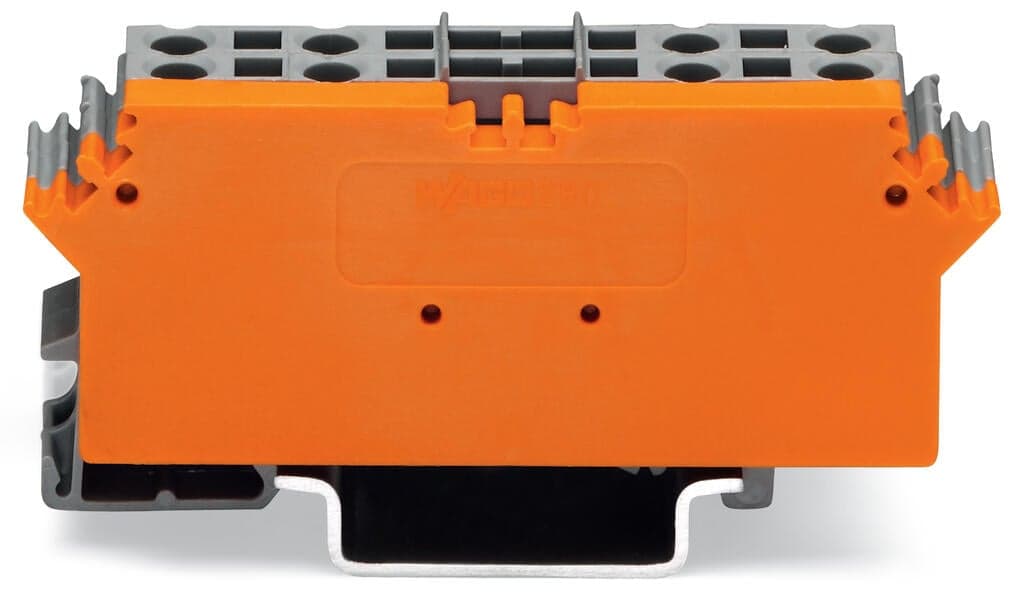

- 4Built with a gray, 4-pole design and an orange separator for added durability.
- 5Mounts on DIN-rail 35 x 15 or 35 x 7.5 for straightforward integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated continuous current | 10A | Rated voltage | 400V |
| Rated surge voltage | 6kV | Pollution degree | 3 |
| Total number of potentials | 2 | Number of connection types | 4 |
| Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring | Width | 15?mm?/ 0.591?inches |
| Height | 73?mm?/ 2.874?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
| Mounting type | DIN-35 rail | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Material group | I |
| Flammability class per UL94 | V0 | Fire load | 0.422MJ |
| Weight | 20g | Processing temperature | -35 … +85?°C |
| eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 30?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918635653 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
