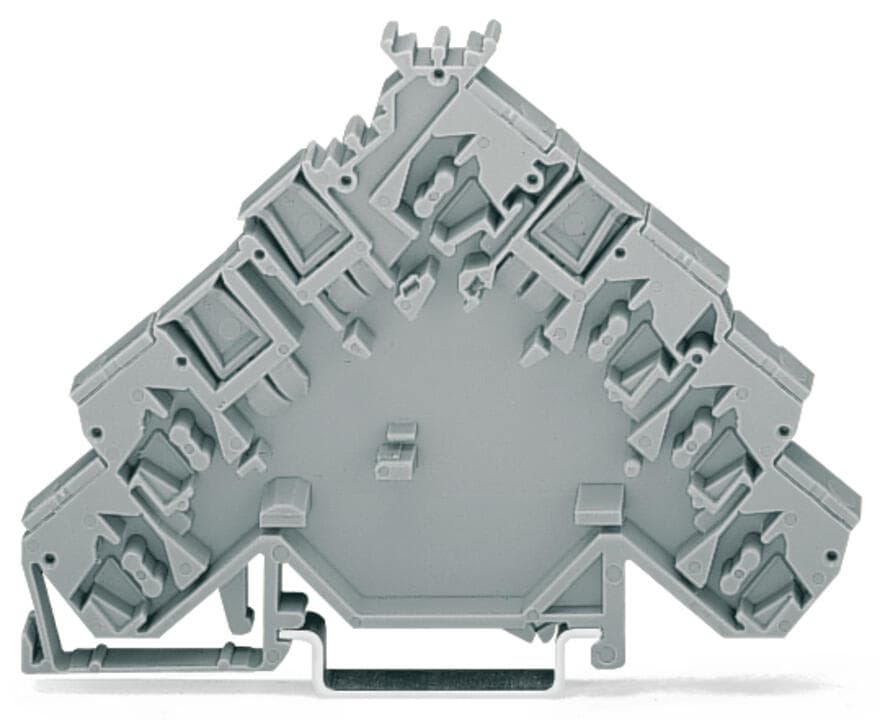

Product Model
280-582
Key Features
- 1Designed for complex control systems, ensuring high reliability and efficiency.
- 2Versatile connectivity options, including screw terminals and push-in connectors.
- 3Compact design for easy integration into various industrial settings.
- 4High-quality materials for durability and long-lasting performance.
- 5Compatible with a wide range of industrial automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Spacers with the same profile clearly differentiate between sensor or actuator terminal groups, e.g., of different power supply. | Number of levels | 4 |
| Width | 5?mm?/ 0.197?inches | Height | 90.5?mm?/ 3.563?inches |
| Depth from upper-edge of DIN-rail | 63.5?mm?/ 2.5?inches | Design | angled |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.417MJ |
| Weight | 8.5g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332151696 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Specifications may be subject to change without notice
