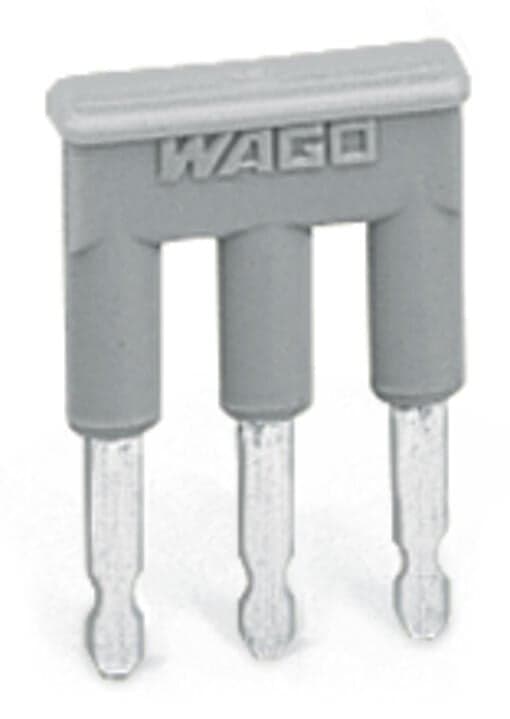

Product Model
280-483
Key Features
- 18 x 15 x 4mm dimensions for easy integration into your setup.
- 2Ensures secure and reliable connections with its insulated design.
- 3Perfect for multiple connections in a single terminal block.
- 4Easy identification in complex electrical systems.
- 5Built to withstand the demands of frequent use and harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 15?mm?/ 0.591?inches | Height | 4?mm?/ 0.157?inches |
| Depth | 19.2 mm / 0.756 inches | Jumper assignment | 1-2-3 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Fire load | 0.011MJ |
| Weight | 1.4g | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918787147 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated current | 24A |
Specifications may be subject to change without notice
