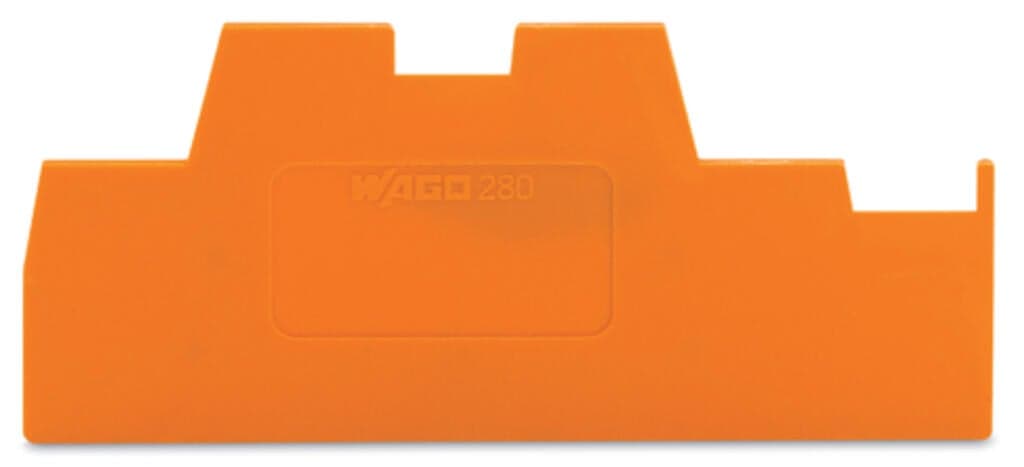

Product Model
280-369
Key Features
- 1High-Quality Material: Made from 1.1 mm thick material for durability and reliability.
- 2Flammability Class V0: Meets UL94 V0 flammability standards for safety in electrical applications.
- 3Orange Color: Easy to identify and integrate into your system with its distinctive orange color.
- 4Packaging in Multiples of 25: Convenient ordering in packs of 25 for efficient inventory management.
- 5Rohs Compliant: Compliant with RoHS regulations, ensuring environmental sustainability in your projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.1?mm?/ 0.043?inches | Height | 74?mm?/ 2.913?inches |
| Depth | 33.5?mm?/ 1.319?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.074MJ | Weight | 2.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332226561 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
