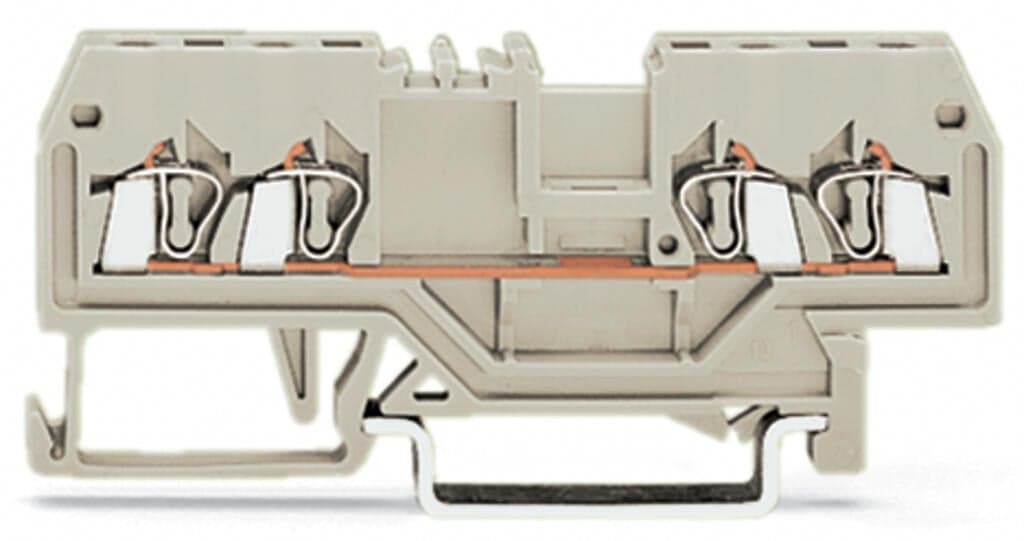

Product Model
279-994
Key Features
- 1Durable design with high-quality materials for long-lasting performance.
- 2Easy-to-use connectors with quick and secure connections.
- 3Ideal for various industrial applications, including automation and control systems.
- 4Compact size for efficient space utilization in tight installations.
- 5Compatible with a wide range of cable types and sizes for versatility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
| Height | 73?mm?/ 2.874?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.116MJ |
| Weight | 6.3g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918520683 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 10A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 10A |
| Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
| Rated current (Ex e II) | 15A | Power loss, per pole (potential) | 0.412W |
| Rated current I<sub>N</sub> for specified power loss | 15A | Resistance value for specified, current-dependent power loss | 0.002Ω |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
