Product Model

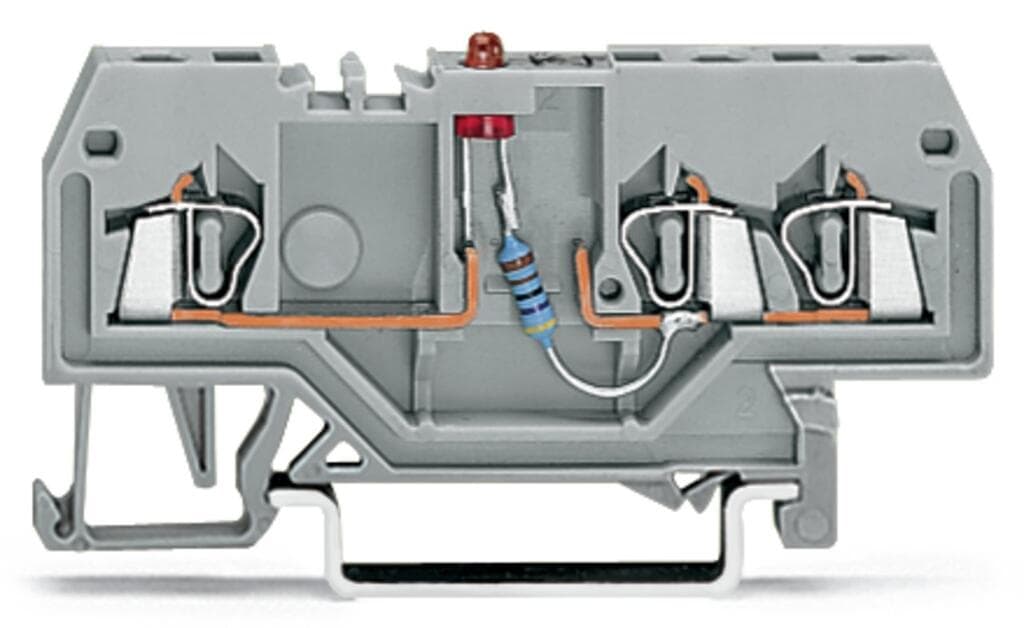

279-674/281-434
Key Features
- 1Red LED Indicator: Visual confirmation of power status.
- 224 VDC Compatibility: Suitable for DC voltage systems.
- 3DIN-35 Rail Mounting: Easy installation on standard rail systems.
- 43-Conductor Design: Flexible wiring options for various applications.
- 5CAGE CLAMP® Connection: Secure and reliable connection technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 3 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
| Height | 62.5?mm?/ 2.461?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.105MJ | Weight | 5.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
| ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454194031 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated current | 0.025A |
| Voltage type 1 | DC | Nominal voltage | 24V |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
